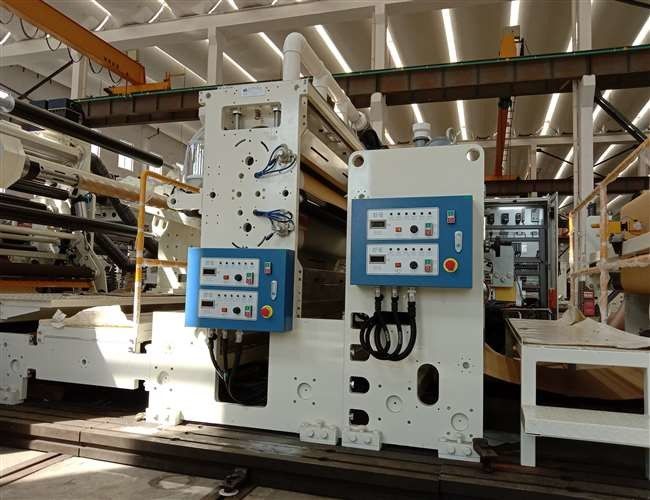

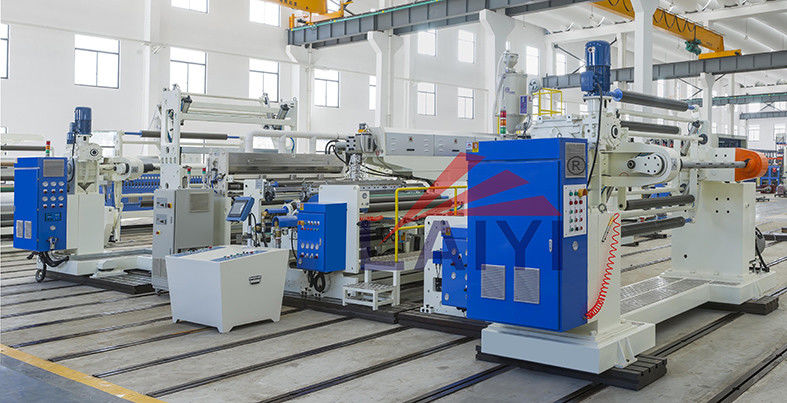

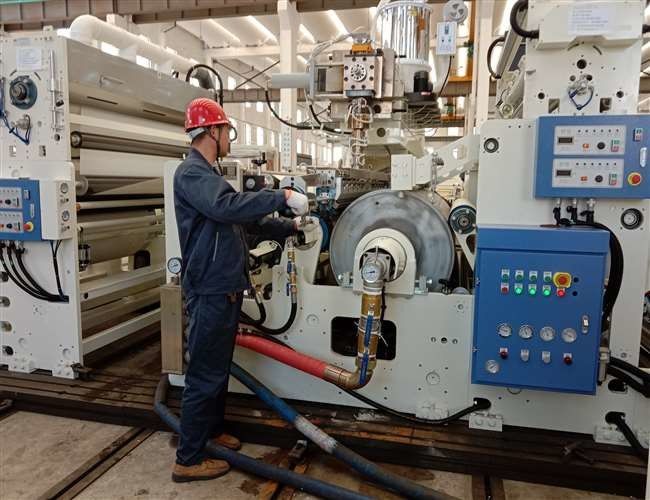

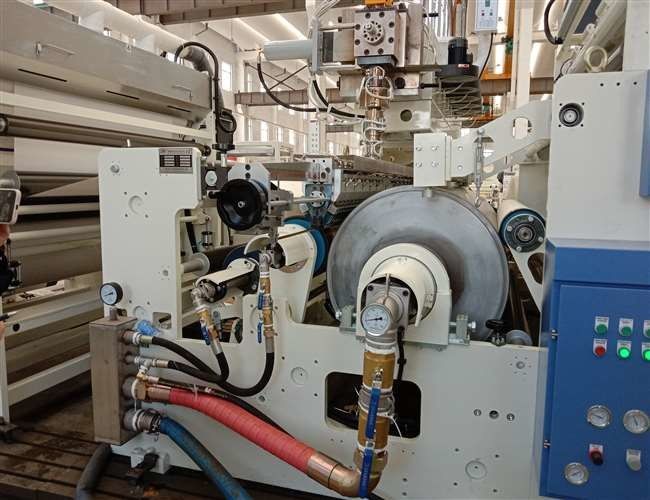

Paper - Plastic Packaging Paper Automatic Laminating Machine With Rapid Cooling System In White And Blue

Minimum Order Quantity : 1 set Price : $70,000-380,000
Packaging Details : Sea worthy packaging Delivery Time : 90-150 days
Payment Terms : L/C, T/T Supply Ability : 20 sets per month
Place of Origin: China Brand Name: Laiyi
Certification: CE Model Number: ASP/ADP

Detail Information

Type: Extrusion Lamianting Machine Condition: New
Automatic Gra: Automatic Driven Type: Mechanical
Voltage: 380V Lifetime: More Than 10 Year
High Light:

automatic paper lamination machine


lamination machine for paper

Product Description



Jiangsu Laiyi has been highly recognized and praised in domestic extrusion laminating industry since 2007 and has increasing market share.As more and more cooperation relationships with foreign enterprises, Jiangsu Laiyi has established a good reputation in the international market.


Jiangsu Laiyi is working on becoming one of the first class packing machinery manufacturers in the world by our professional quality and superior service.


Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.


一, Paper Extrusion Laminating Machine

  • Release paper is widely used to Plastic packaging papers, paper cups, paper bowls, release papers, labels, stationery paper, etc.
  • Can be single side and double sides laminating.
  • We also make customized machine.
  • This is a double station tumble initiative automatic unwinding and rewinding line.


二,Specification of the paper extrusion laminating machine:


Item LY-ASP-1200 LY-ASP-1400 LY-ASR-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 250m/min 250m/min 250m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 250kg/h or 400kg/h
Laminating thickness range: 8-45μm
Base material: Paper(35-350gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)


Main Features:

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible


Paper - Plastic Packaging Paper Automatic Laminating Machine With Rapid Cooling System In White And Blue 0









             " Professional qualifications to create brand" is Laiyi's business objective!


                      "Create excellece by quality, prvide service with honesty" is


                                              Laiyi's business prupose!
