Automatic Release Paper Laminating Machine Double Shaft - Less Paper Roll Stands single srew single T-die

Minimum Order Quantity : 1 set Price : $70,000-380,000
Packaging Details : Sea worthy packaging Delivery Time : 90-150 days
Payment Terms : L/C , T/T Supply Ability : Max 20sets per month
Place of Origin: China Brand Name: Laiyi
Model Number: ADRP

Detail Information

Type: Paper Lamianting Machine Condition: New
Automatic Gra: Automatic Driven Type: Mechanical
Voltage: 380V Lifetime: More Than 10 Year
High Light:

paper sheet lamination machine


lamination machine for paper

Product Description


Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Professional extrusion laminating line established by more than 10 years of working can provide long time services for large enterprises both at home and abroad with professional researches.

As a domestic normalized packing machinery manufacturer with strength, who has develpment and technical force, and solid manufactruing and service system, Jiangsu Laiyi has sold more than 600 sets of machines in the world


1. Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.


2. Technical parameters of release paper extrusion laminating machine:

Machine width 1200/1400/1700mm
Effective width Max 1100/1300/1600mm
Machine speed 300-350m/min
Screw diameter LD-90mm/LD-100mm/LD-115mm,Auto lifting type extruder
Extruder output Max 300kg/h,400kg/h or 550kg/h
Used resins Coated resins like LDPE/LLDPE/PP/EVA
Coating thickness 8-45μm
Maxdiameter Unwinder:Φ1200mm;Rewinder:Φ1200mm
Basic material Paper(35-200gsm)



3. Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible

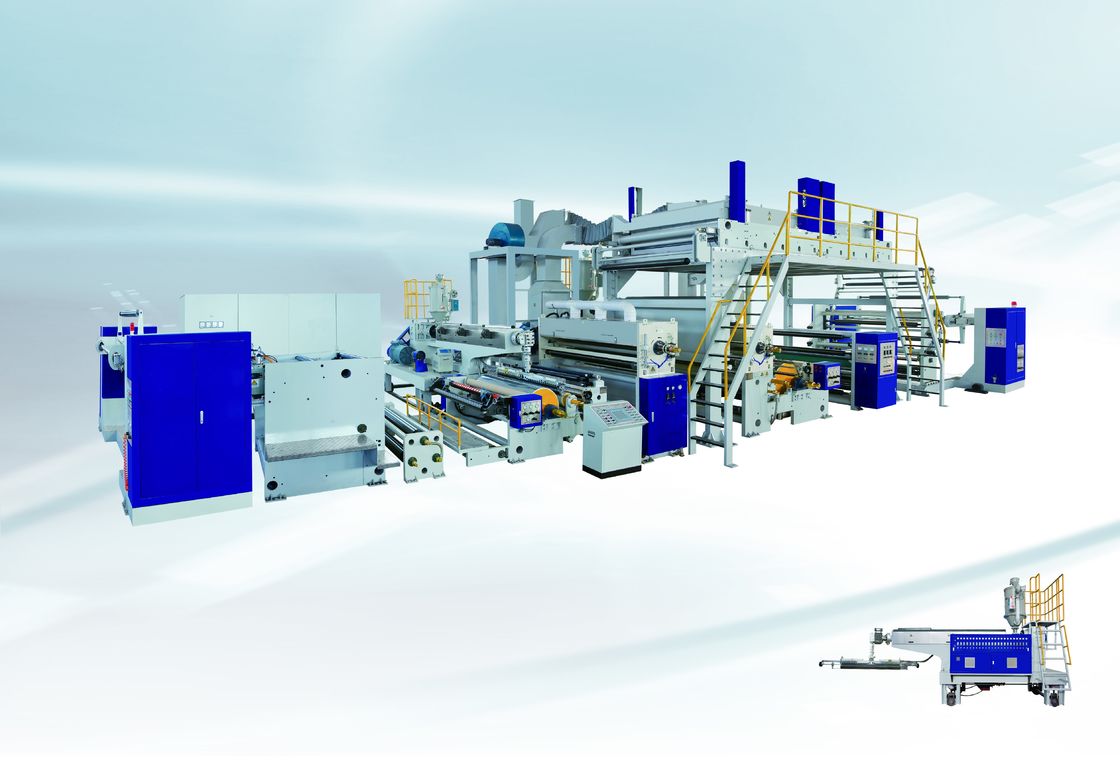

Automatic Release Paper Laminating Machine Double Shaft - Less Paper Roll Stands single srew single T-die 0

Single sided release paper laminating machine


Automatic Release Paper Laminating Machine Double Shaft - Less Paper Roll Stands single srew single T-die 1


Double sided release paper laminating machine










              " Professional qualifications to create brand" is Laiyi's business objective!


                       "Create excellece by quality, prvide service with honesty" is


                                                 Laiyi's business prupose!
