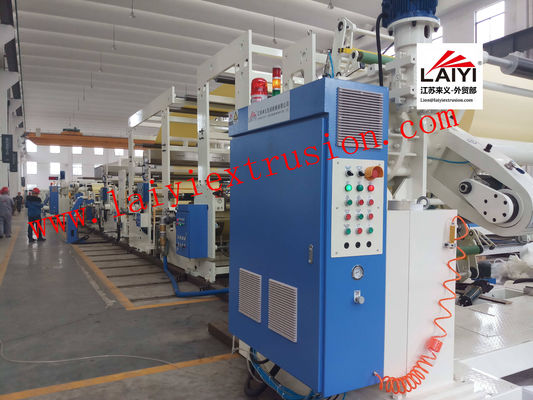

Hot Melt Adhesive Film Extrusion Coating Machine Max 1600/2000/2200mm Width

Hot Melt Adhesive Film Extrusion Coating Machine Max 1600/2000/2200mm Width

MOQ: 1 set
Price: $70,000-380,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C , T/T
Supply Capacity: Max 20sets per month
Detail Information
Place of Origin
China
Brand Name
Laiyi
Model Number
ATF
Type:
Extrusion Laminating Machine
Condition:
New
Automatic Gra:
Automatic
Voltage:
380V
Lifetime:
More Than 10 Year
Minimum Order Quantity:
1 set
Price:
$70,000-380,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C , T/T
Supply Ability:
Max 20sets per month
High Light:

poly coating machine

,

adhesive coating machine

Product Description

Hot Melt Adhesive Film Extrusion Coating Machine Max 1600/2000/2200mm Width



1. Thermal Film Extrusion Laminating Machine



 Technical parameters

Machine width 1700/2150/2350mm
Effective width Max 1600/2000/2200mm
Machine speed 250-300m/min
Screw diameter LD-90mm/LD-100mm/LD-115mm
Extruder output Max 300kg/h,300kg/h or 450kg/h
Used resins Coated resins like EVA
Coating thickness 5-45μm
Maxdiameter Unwinder:Φ800mm;Rewinder:Φ800mm
Basic material Plastic films
Dimension(L*W*H) 22.8*13*5.5m





2.Thermal Film Extrusion Laminating Machine

Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

3. Thermal Film Extrusion Laminating Machine

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
