High Performance Film Lamination Machine With Rapid Cooling System

High Performance Film Lamination Machine With Rapid Cooling System

  • High Light

    film lamination machine

    ,

    industrial laminating machine

  • Type
    Film Laminating Machine
  • Condition
    New
  • Automatic Gra
    Automatic
  • Driven Type
    Mechanical
  • Voltage
    380V
  • Lifetime
    More Than 10 Year
  • Place of Origin
    China
  • Brand Name
    Laiyi
  • Certification
    CE
  • Model Number
    ACP
  • Minimum Order Quantity
    1 set
  • Price
    $70,000-400,000
  • Packaging Details
    Sea worthy packaging
  • Delivery Time
    90-150 days
  • Payment Terms
    L/C , T/T
  • Supply Ability
    Max 20sets per month

High Performance Film Lamination Machine With Rapid Cooling System



Jiangsu Laiyi has been highly recognized and praised in domestic extrusion laminating industry since 2007 and has increasing market share.As more and more cooperation relationships with foreign enterprises, Jiangsu Laiyi has established a good reputation in the international market.

Jiangsu Laiyi is working on becoming one of the first class packing machinery manufacturers in the world by our professional quality and superior service Professional extrusion laminating line established by more than 10 years of working can provide long time services for large enterprises both at home and abroad with professional researches.





一,Color Printing Packaging Extrusion Laminating Machine

  • Color printing packaging paper is widely used to
  • 1)food packaging materials and liquid packaing materials;
  • 2)Non-woven fabrics compound with color printing films/ woven fabrics compound with alumium foils/ aluminum-plastic compound etc.
  • Can be Co-extrusion and Mono extrusion line
  • We also make customized machine.
  • This is a double station tumble initiative automatic unwinding and rewinding line.

二,Technical parameters of Color printing packaging extrusion laminating machine.

Item LY-ACP2-1200 LY-ACP2-1400 LY-ACP2-1700 LY-ACP2-2200 LY-ACP2-2500
Effective laminating width: max1100mm max1300mm max1600mm max2100mm max2400mm
Machine speed: 200-250m/min
Screw diameter: φ80mm,φ90mm,φ100mm,φ110mm
Max unwinder&rewinder diameter: φ800mm
Sandwich diameter: φ600mm
Max output: 180kg/h,200kg/h,300kg/h or 400kg/h
Coated resins: LLDPE/LDPE/PP/EVA/EAA
Laminating thickness range: 8-45μm
Base material: Aluminium foil/ Non-woven fabric /Metalized film/ BOPP/ BOPET/ BOPA,etc(10-200gsm)
Sandwich material: CPE / CPP/ PET/Aluminium foils
Dimension: Co-extrusion:19.55*(9.5-14)*4.7m
Mono extrusion: 11.65*(9.5-14)*3.8m







三,Main Features





1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible





Extruder

· Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.

· Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.

· The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.

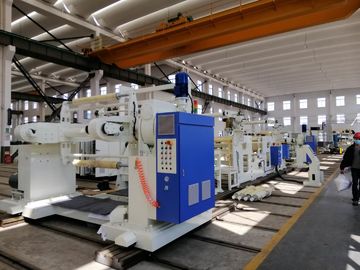

High Performance Film Lamination Machine With Rapid Cooling System 0High Performance Film Lamination Machine With Rapid Cooling System 1
