1200-1600mm Large Non Woven PaperAutomatic Laminating Machine With 2  automatic turnover air shaf  High speed white blue

1200-1600mm Large Non Woven PaperAutomatic Laminating Machine With 2 automatic turnover air shaf High speed white blue

  • High Light

    automatic paper lamination machine

    ,

    lamination machine for paper

  • Type
    Paper Lamianting Machine
  • Condition
    New
  • Automatic Gra
    Automatic
  • Driven Type
    Mechanical
  • Voltage
    380V
  • Lifetime
    More Than 10 Year
  • Place of Origin
    China
  • Brand Name
    Laiyi
  • Certification
    CE
  • Model Number
    ADRP/ASRP
  • Minimum Order Quantity
    1 set
  • Price
    $70,000-380,000
  • Packaging Details
    Sea worthy packaging
  • Delivery Time
    90-150 days
  • Payment Terms
    L/C , T/T
  • Supply Ability
    Max 20sets per month

1200-1600mm Large Non Woven PaperAutomatic Laminating Machine With 2 automatic turnover air shaf High speed white blue





Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi

Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology

in the new district has improved its brand influence and become the industry leader in the forefront

of China with a large number of market share in Chinese extrusion laminating machine industry.

Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.





一,Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.





二,Specification of the Line:



Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADRP-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Resins: LLDPE/LDPE/PP/EVA
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)



  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.



Double station unwinder:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.
  • It has upper cutter and down cutter.

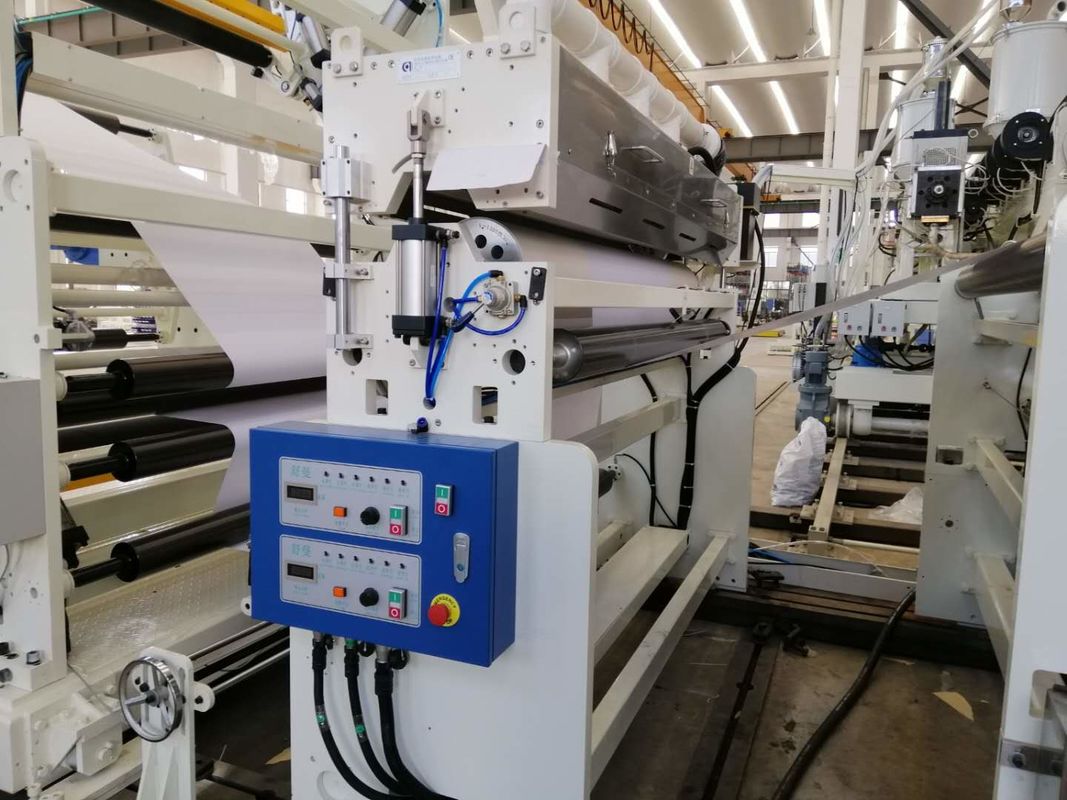

1200-1600mm Large Non Woven PaperAutomatic Laminating Machine With 2  automatic turnover air shaf  High speed white blue 0
