1200/1400/1700mm Width Paper Laminating Machine With Rapid Cooling System

1200/1400/1700mm Width Paper Laminating Machine With Rapid Cooling System

MOQ: 1 set
Price: $70,000-380,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C , T/T
Supply Capacity: Max 20sets per month
Detail Information
Place of Origin
China
Brand Name
Laiyi
Certification
CE
Model Number
ADRP/ASRP
Type:
Paper Lamianting Machine
Condition:
New
Automatic Gra:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Lifetime:
More Than 10 Year
Minimum Order Quantity:
1 set
Price:
$70,000-380,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C , T/T
Supply Ability:
Max 20sets per month
High Light:

paper sheet lamination machine

,

lamination machine for paper

Product Description


Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology in the new district has improved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.

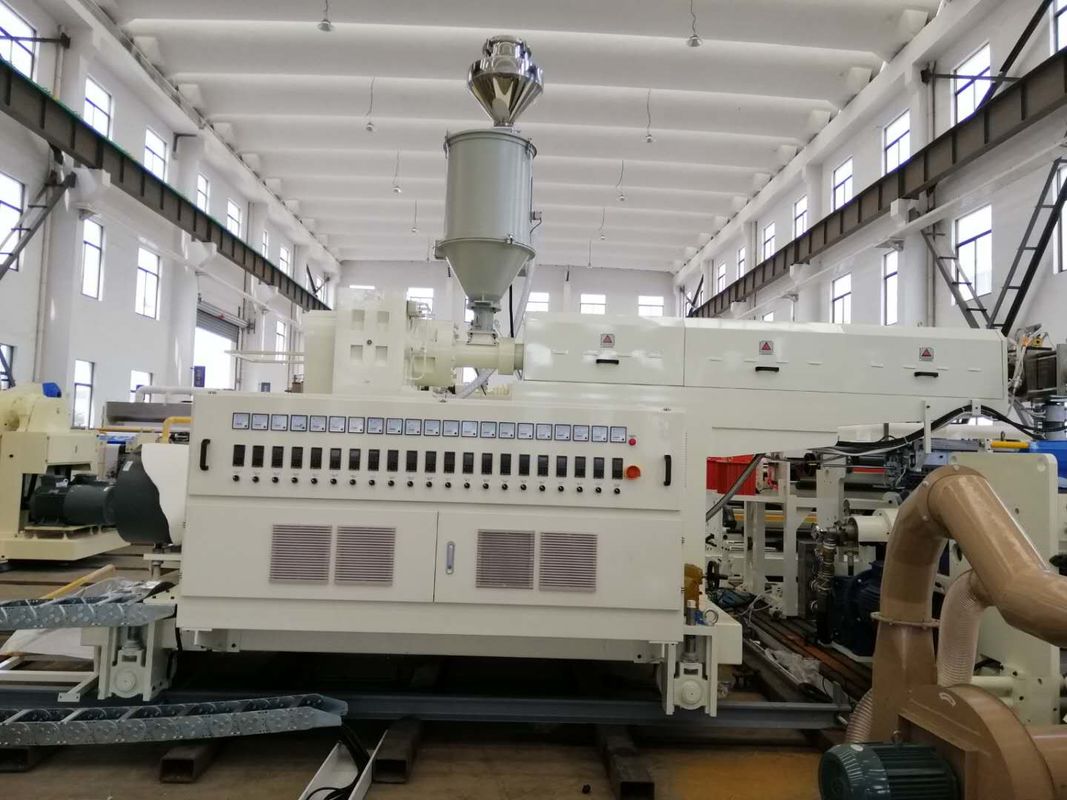

一,Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.





二,Specification of the Line:



Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADRP-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Resins: LLDPE/LDPE/PP/EVA
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)



  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.

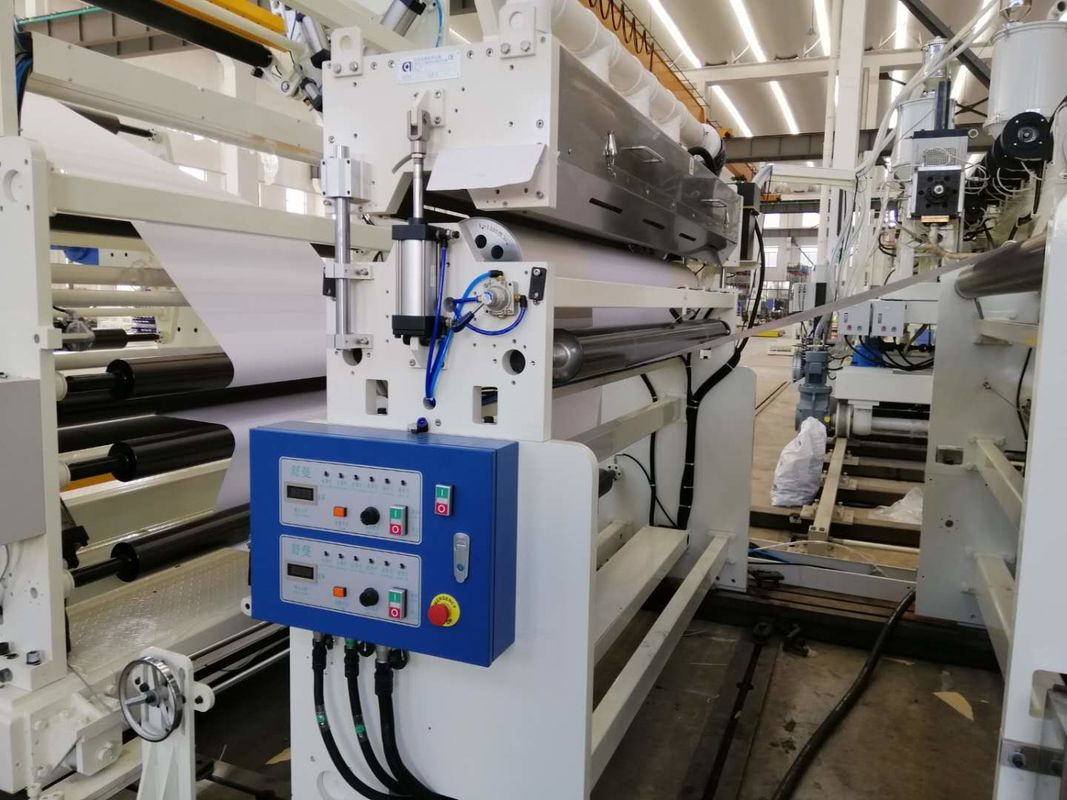

  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.

  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device. Tension control system is to ensure the constant tension of rewinding.





Double station rewinder:

  • It can automatically change rolls without stopping machine or reducing speed.
  • It applies to multiple materials and has a wide range of uses, has different way to control tension of different material.
  • It uses suspension type press roller to rewind, the tension of multiple materials can be controlled to guarantee the smooth and beauty of the production surface.



Single sided release paper laminating machine





1200/1400/1700mm Width Paper Laminating Machine With Rapid Cooling System 0
