Extrusion Coating Big Size 1100mm Paper Plate Lamination Machine

Extrusion Coating Big Size 1100mm Paper Plate Lamination Machine

  • High Light

    1100mm paper lamination machine


    350m / min paper plate lamination machine

  • Type
    Paper Lamianting Machine
  • Condition
  • Automatic Grade
  • Driven Type
  • Voltage
  • Lifetime
    More Than 10 Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Sea worthy packaging
  • Delivery Time
  • Payment Terms
    L/C , T/T
  • Supply Ability
    Max 20sets per month

Extrusion Coating Big Size 1100mm Paper Plate Lamination Machine


Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi

Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology

in the new district has improved its brand influence and become the industry leader in the forefront

of China with a large number of market share in Chinese extrusion laminating machine industry.

Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.


Professional extrusion laminating line established by 10 years of working can provide long time services

for large enterprises both at home and abroad with professional researches.


As a domestic normalized packing machinery manufacturer with strength, who has development and

technical force, and solid manufacturing and service system, Jiangsu Laiyi has sold more than 500 sets

of machines in the world.


一,Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.



二,Specification of the Line:


Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADCP-1R00
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)


  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.


Double station unwinder:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.
  • It has upper cutter and down cutter.

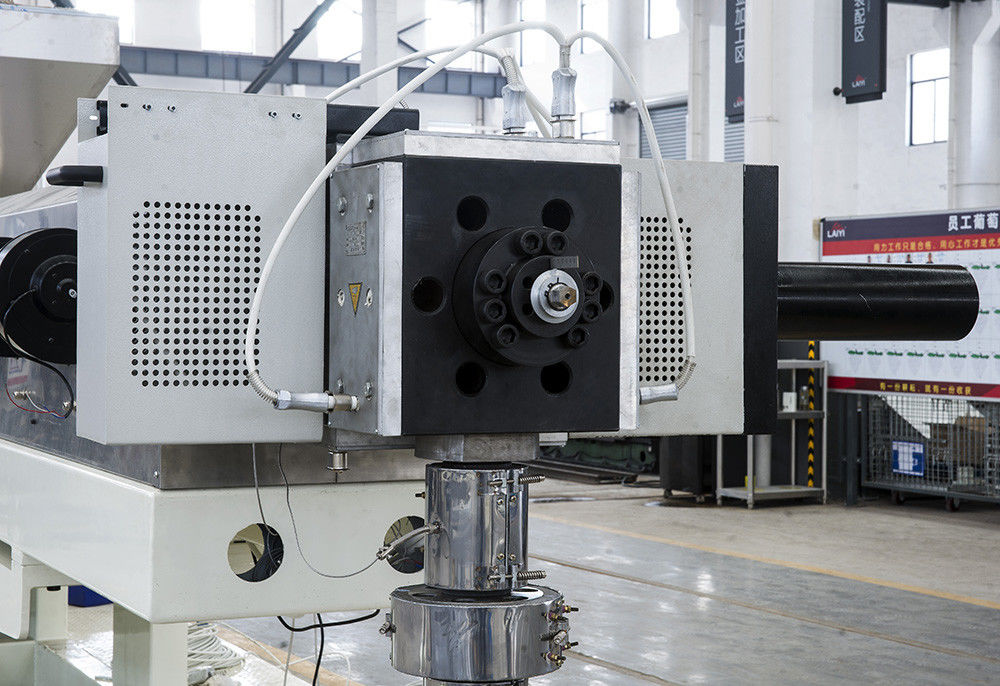

Hydraulic automatic screen exchanger

  • Screens with different number of holes in the breaker plate can filter contamination from the polymer melt and create pressure at the extruder head, to provide thermal homogeneity and constant flow and enhance plastication.
  • Its high pressure-resistance, great tightness, and convenience to operate help save time, materials and labour.

Extrusion Coating Big Size 1100mm Paper Plate Lamination Machine 0




Extrusion Coating Big Size 1100mm Paper Plate Lamination Machine 1
