1600mm Width Paper LDPE Extrusion Coating Lamination Machine

1600mm Width Paper LDPE Extrusion Coating Lamination Machine

  • High Light

    1600mm Extrusion Coating Lamination Machine


    LDPE Extrusion Coating Lamination Machine


    1600mm extrusion coating line

  • Type
    Extrusion Lamianting Machine
  • Condition
  • Automatic Gra
  • Driven Type
  • Voltage
  • Lifetime
    More Than 10 Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Sea worthy packaging
  • Delivery Time
    90-150 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    20 sets per month

1600mm Width Paper LDPE Extrusion Coating Lamination Machine



Jiangsu Laiyi has been highly recognized and praised in domestic extrusion laminating industry since 2007 and has increasing market share.As more and more cooperation relationships with foreign enterprises, Jiangsu Laiyi has established a good reputation in the international market.


Jiangsu Laiyi is working on becoming one of the first class packing machinery manufacturers in the world by our professional quality and superior service.


Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.


一, Paper Extrusion Laminating Machine

  • Release paper is widely used to Plastic packaging papers, paper cups, paper bowls, release papers, labels, stationery paper, etc.
  • Can be single side and double sides laminating.
  • We also make customized machine.
  • This is a double station tumble initiative automatic unwinding and rewinding line.


二,Specification of the paper extrusion laminating machine:


Item LY-ASP-1200 LY-ASP-1400 LY-ASR-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 250m/min 250m/min 250m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 250kg/h or 400kg/h
Laminating thickness range: 8-45μm
Base material: Paper(35-350gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)

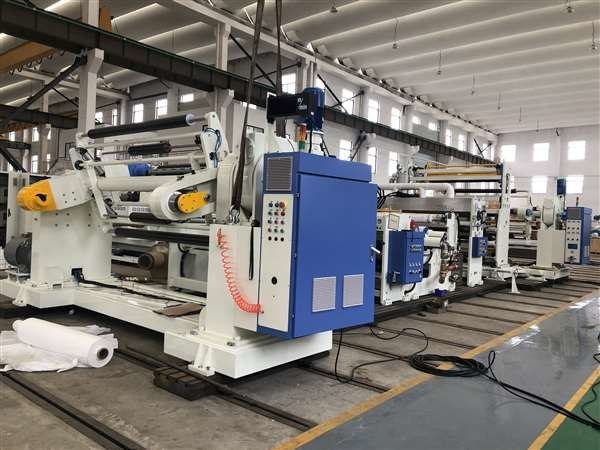

1600mm Width Paper LDPE Extrusion Coating Lamination Machine 01600mm Width Paper LDPE Extrusion Coating Lamination Machine 1

Main Features:

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

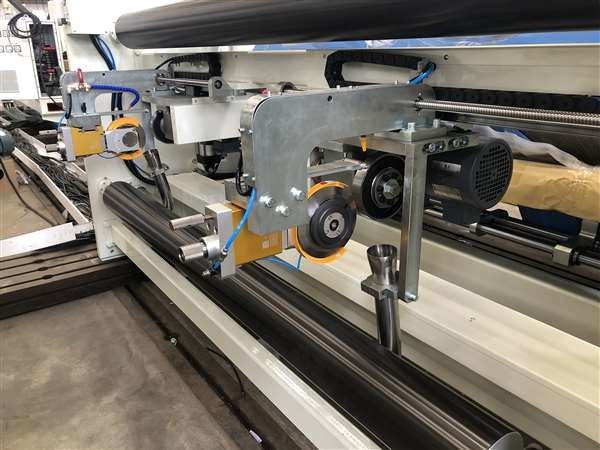

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible

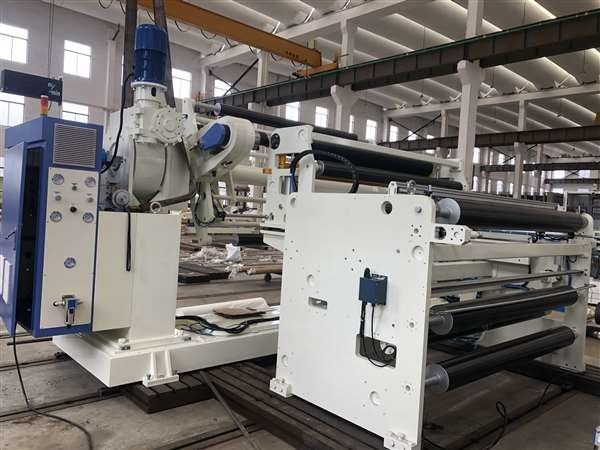

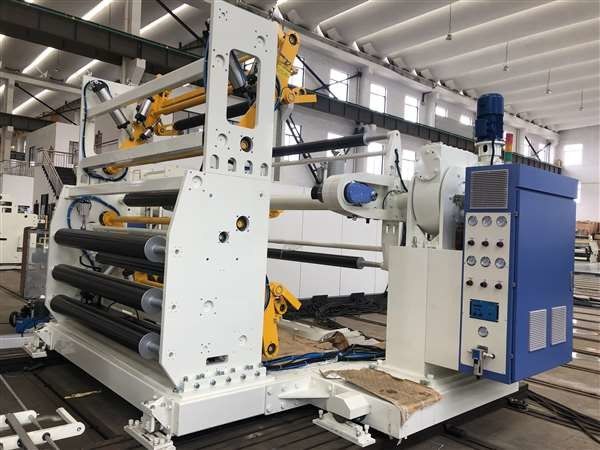

1600mm Width Paper LDPE Extrusion Coating Lamination Machine 2
