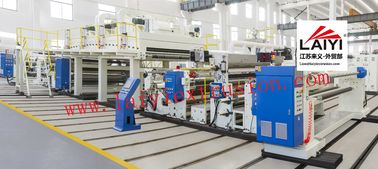

BOPP/BOPET/BOPA Films Automatic Lamination Machine 5-45μM Coating Thickness

BOPP/BOPET/BOPA Films Automatic Lamination Machine 5-45μM Coating Thickness

MOQ: 1 set
Detail Information
Place of Origin
China
Brand Name
Laiyi
Certification
CE
Type:
Coating Machine
Condition:
New
Automatic Grade:
Automatic
Driven Type:
Mechannical
Voltage:
380V
Lifetime:
More Than 10 Years
Minimum Order Quantity:
1 set
High Light:

thermal lamination machine

,

hot lamination machine

Product Description

BOPP/BOPET/BOPA Films Automatic Lamination Machine 5-45μM Coating Thickness



1. woven fabrics compound with aluminium foils



BOPP/BOPET/BOPA Films Automatic Lamination Machine 5-45μM Coating Thickness 0



woven fabrics compound with aluminium foils/ aluminum-plastic compound

2. woven fabrics compound with aluminium foils

Technical parameters

Machine specification 1200mm/1400mm/1700mm/2200mm/2500mm
Effective width Max 1100mm/1300mm/1600mm/2100mm/2400mm
Machine speed 200m/min
Extruder LD-80mm/LD-115mm
Extruder power 37-75kw
Extruder output Max 180kg/h or 350kg/h
Used resins Coated resins like LDPE/LLDPE/PP/EVA/EAA/EMA/EMAA
Coating thickness
5-45μm
Thickness uniformity ≤±5%
Unwinding diameter Max Φ800mm
Sandwich unwinder diameter Max Φ600mm
Rewinding diameter Max Φ800mm
Basic material BOPP/BOPET/BOPA films, non-woven fabrics and aluminium foils,etc (10-200g/㎡)
Sandwich unwinder material CPE/CPP/PET/Aluminium foils
Tension control Full automatic tension control of unwinder, sandwich unwinder and rewinder
Control mode Human-machine interface, extrusion thickness is automatically precision calculated by computer, whole machine linkage control
Frequency converter Imported AC digital vector control inverter
Machine Dimension(L*W*H) 11.65×(9.5-14)×3.8m



3. woven fabrics compound with aluminium foils

Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

4. woven fabrics compound with aluminium foils

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
