LY-ADT Duct Tape Extrusion Laminating Machine

LY-ADT Duct Tape Extrusion Laminating Machine

  • High Light

    automatic lamination machine


    commercial laminating equipment

  • Type
    Laminating Machine
  • Condition
  • Automatic Grade
  • Driven Type
  • Voltage
  • Lifetime
    More Than 10 Years
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
    1 set

LY-ADT Duct Tape Extrusion Laminating Machine

LY-ADT Duct Tape Extrusion Laminating Machine

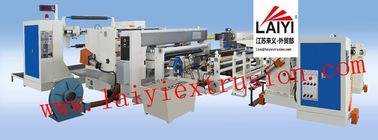

LY-ADT Duct Tape Extrusion Laminating Machine 0

1. Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

2. Duct type technical parameters

Machine specification 1200mm/1400mm
Effective width Max1100mm/1300mm
Machine speed 120m/min
Extruder LD-120mm/LD-135mm
Extruder power 90-110kw
Extruder output Max 450kg/h or 550kg/h
Used resins Coated resins like LDPE/HDPE/Color master batch
Coating thickness 45-100μm
Thickness uniformity ≤±5%
Unwinding diameter Max Φ1200mm
Rewinding diameter Max Φ1200mm
Basic material Reeling woven fabrics, plastic woven fabrics, etc
Tension control Full automatic tension control of unwinder and rewinder
Control mode Human-machine interface, extrusion thickness is automatically precision calculated by computer, whole machine linkage control


3. LY-ADT Duct Tape Extrusion Laminating Machine

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
