Automatic Lift Paper Laminating Machine Easier Operation Auto Splicer Device

Automatic Lift Paper Laminating Machine Easier Operation Auto Splicer Device

MOQ: 1 set
Price: $70,000-380,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C , T/T
Supply Capacity: Max 20sets per month
Detail Information
Place of Origin
China
Brand Name
Laiyi
Certification
CE
Model Number
ADRP/ASRP
Type:
Paper Lamianting Machine
Condition:
New
Automatic Gra:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Lifetime:
More Than 10 Year
Minimum Order Quantity:
1 set
Price:
$70,000-380,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C , T/T
Supply Ability:
Max 20sets per month
High Light:

automatic paper lamination machine

,

lamination machine for paper

Product Description

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.









一,Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.





二,Specification of the Line:



Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADCP-1R00
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Resins: LLDPE/LDPE/PP/EVA
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)



  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.





Double station unwinder:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.

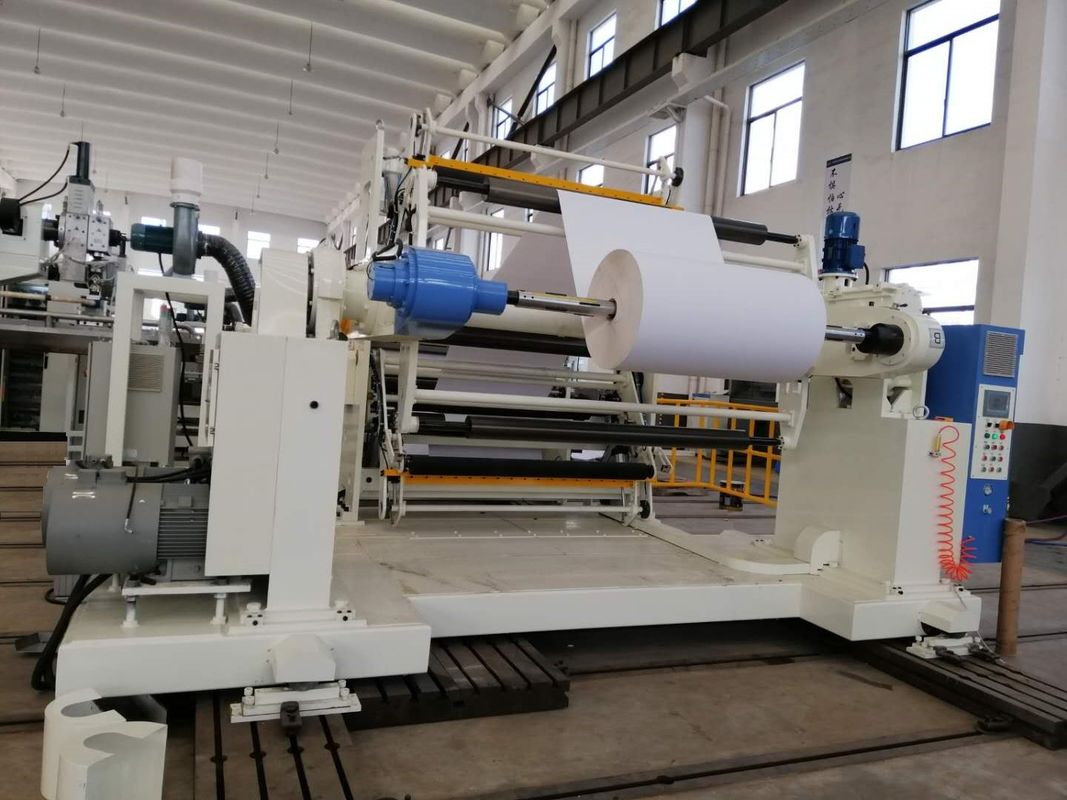

Automatic Lift Paper Laminating Machine Easier Operation Auto Splicer Device 0







                " Professional qualifications to create brand" is Laiyi's business objective!



                        "Create excellece by quality, prvide service with honesty" is



                                              Laiyi's business prupose!
