Automatic Paper Coating Machine 380V with 200kg/h Extruder

MOQ: 1 set
Detail Information
Product Description
Detail Information
Place of Origin
Changzhou
Brand Name
Laiyi
Certification
CE
Type:
Paper Coating Machine
Condition:
New
Automatic Gra:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Lifetime:
More Than 10 Year
Minimum Order Quantity:
1 set
Highlight:

paper poly coating machine

,

paper pe coating machine

Product Description

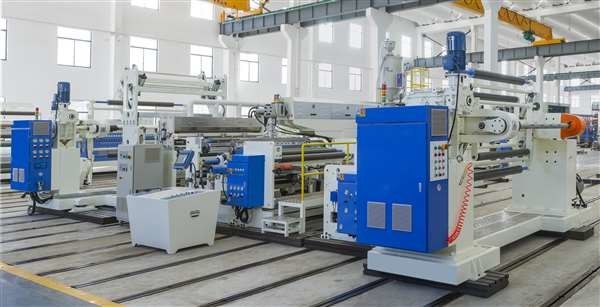

Paper Cup Heat Laminator Machine 380V With High Performance Extruders
This advanced Paper Cup Heat Laminator Machine operates at 380V and features high-performance extruders for efficient laminating and coating processes.
Technical Specifications
Parameter Specification
Machine specification 1200mm/1400mm/1700mm
Effective width Max1100mm/1300mm/1600mm
Machine speed 350m/min

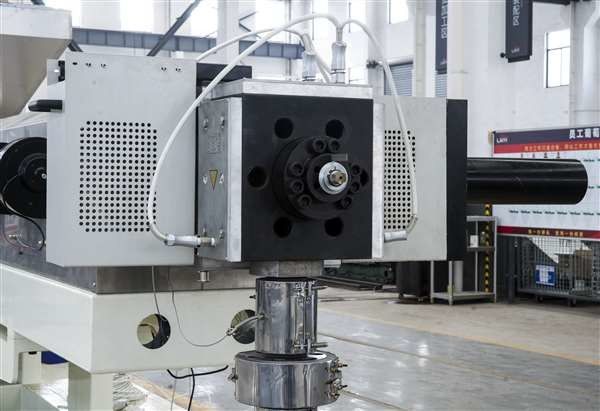

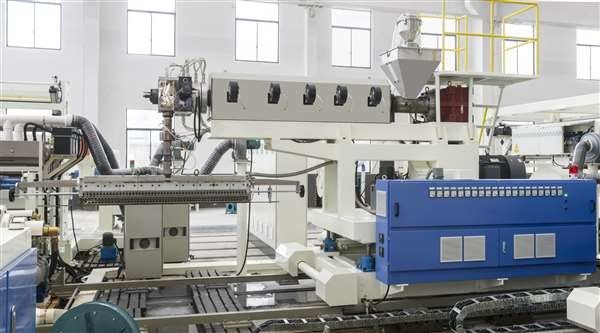

Extruder LD-90mm/LD-100mm "Automatic lifting type extruder"
Extruder power 45-55kw
Extruder output Max 200kg/h or 250kg/h
Used resins Coated resins like LDPE/LLDPE/PP/EVA/EAA
Coating thickness 8-45μm
Thickness uniformity ≤±5％
Unwinding diameter Max Φ1200mm
Rewinding diameter Max Φ1200mm
Basic material Paper(35-200g/㎡)
Tension control Full automatic tension roller closed-loop constant tension control
Control mode Human-machine interface, computer-controlled extrusion thickness
Frequency converter Imported AC digital vector control inverter
Machine Dimension(L*W*H) 21.85*(9.5-12)*4.5m
Product Applications
Jiangsu Laiyi specializes in designing and manufacturing extrusion laminating/coating lines with expertise in co-extrusion of special polymers. Our solutions include:
  • Customized and modular layouts for special product requirements
  • Chill-roll units with precise temperature control
  • Rapid cooling systems
  • Special winders and unwinders for various applications
  • High-performance extruders with special screw designs for materials like LDPE, SURLYN, EVA, EAA, PP
  • Customized solutions including different layers, sizes and die widths
Main Features

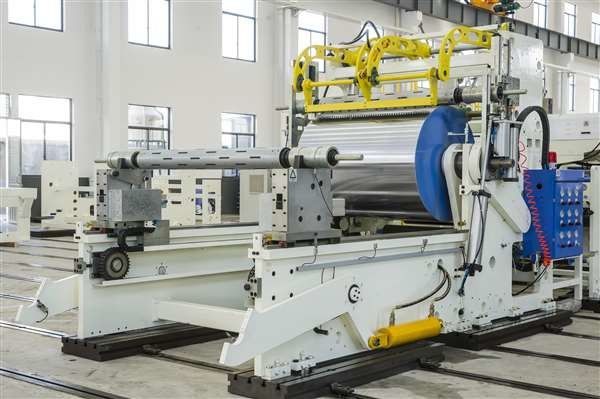

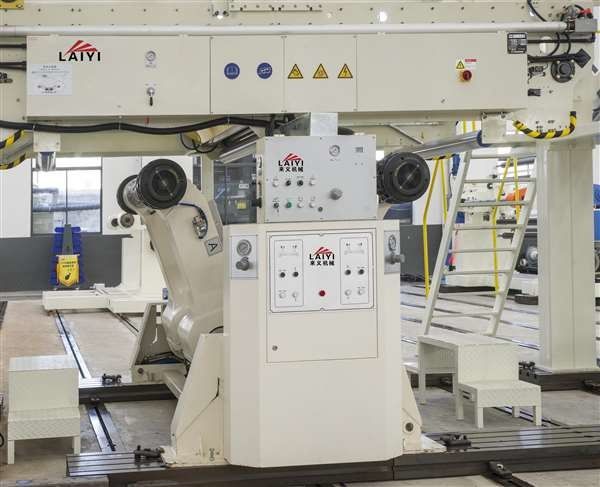

  • Double Shaft-less paper roll stands suitable for 3-6 inch paper core with automatic lift
  • Auto splicer device enables material exchange at 150-300 m/min without speed reduction
  • Ultrasonic type EPC system for simplified material replacement
  • Hydraulic lamination structure design for thinner, firmer coating
  • Trimming device for even finished coated paper rolls

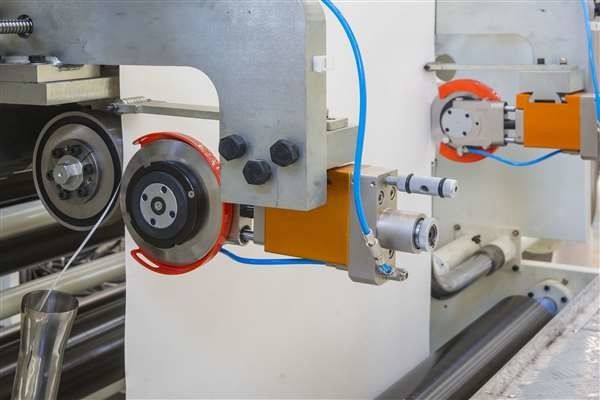

  • Special cutting knife and rewinder design for high-speed rewinding shaft exchange
