Name: LY-ADRP115-1700 Paper Coating Machine 380V 300m/min LDPE LLDPE
Brand: JIANGSU LAIYI PACKING MACHINERY CO.,LTD.
SKU: LY-ADRP115-1700
Price: 270.00 USD
Availability: InStock

Home > Products > Paper Coating Machine >

LY-ADRP115-1700 Paper Coating Machine 380V 300m/min LDPE LLDPE

Non woven paper plastic coating machine

LLDPE paper plastic coating machine

LLDPE extrusion laminating machine

Place of Origin:

Changzhou, China

Brand Name:

LAIYI

Certification:

CE , ISO9001

Model Number:

LY-ADRP115-1700

Request A Quote

Product Details

Machine Model:

LY-ADRP115-1700

Type::

Laminting Machine

Die Model::

T-die

Voltage::

380V 3PH 50HZ

Basic Material::

Paper(35-250gsm)

Resins::

LDPE/LLDPE/PP/EVA

Controlling System::

Full Computer (PLC Control)

Length Of Machine:

L*W*H=19.2/13.2*(9.5-12)*4.5m

Warranty::

One Year

Afer Sales Service::

Engineers Availble To Service Machinery Overseas

Life Time::

More Than 10 Years

Color::

White And Blue

Machinery Speed:

350mtr/min

Production Speed:

300mtr/min

Corona Brand:

Sherman

Weight:

38t

Highlight:

Non woven paper plastic coating machine

LLDPE paper plastic coating machine

LLDPE extrusion laminating machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

$90,000--$450,000/set

Packaging Details

seaworthy packing

Delivery Time

5 months

Payment Terms

T/T,,L/C

Supply Ability

20sets/month

Automatic Paper Coating Machine 380V with 200kg/h Extruder

Get Best Price

Paper Cup & Bowel Extrusion Laminating Machine

Get Best Price

LY-ADRP115-1700 Paper Coating Machine 380V 300m/min LDPE LLDPE

Get Best Price

Video

Human Machine Interface Paper Coating Machine With Good Adhesion Ability

Get Best Price

+8613482267590

xgs7613@laiyiextrusion.com

86-519-82699228

Contact Now

Product Description

LY-ADRP115-1700 Paper Coating Machine 380V 300mtr/min LDPE/LLDPE

Product Description

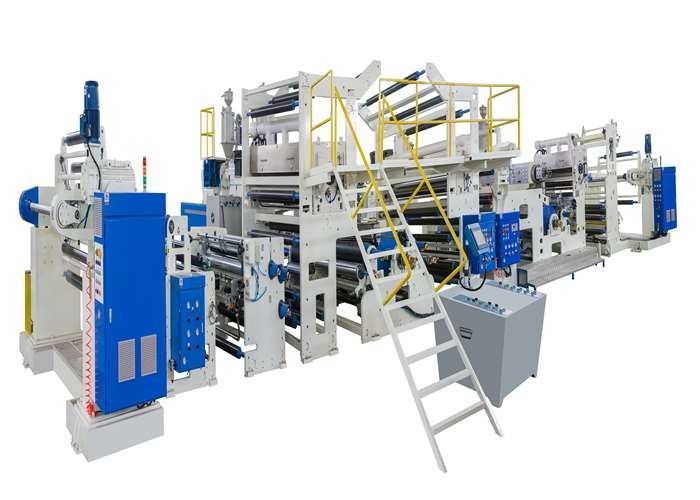

LLDPE Non Woven Paper Plastic Coating Machine with High Fastness and Uniformity. Double Side Extrusion Compound Laminating Paper Coating Machine.

This extrusion laminating machine uses resins such as LDPE, HDPE, PP, and EVA as raw materials. The process involves melting the plastic for extrusion through a T-die mold and laminating it with base materials. This machine is widely used for laminating substrates including paper, non-woven fabric, woven fabric, aluminum foil, and BOPP film. The finished product is known for its high fastness, uniform thickness, and excellent sealing capability.

Main Technical Parameters

Machine	LY-ADRP-1200	LY-ADRP-1400	LY-ADRP-1700
Machine width	1200MM	1400MM	1700MM
Effective width	Max 1100MM	Max 1300mm	Max 1600mm
Machine Speed	300mtr/min	300mtr/min	300mtr/min
Screw diameter	LD-115MM	LD-115MM	LD-115MM
Extruder output	400kg/h	400kg/h	400kg/h
Used Resins	LDPE/LLDPE/PP/EVA	LDPE/LLDPE/PP/EVA	LDPE/LLDPE/PP/EVA
Coating Thickness	8-45um	8-45um	8-45um
Rewinder/Unwinder Dia	Ø1200MM	Ø1200MM	Ø1200MM
Base material	Paper(35-200g)	Paper(35-200g)	Paper(35-200g)

Two original paper rolls can be installed simultaneously on the shaftless unwinder
Auto-splicing controlled by computer without stopping the line
Web-guide device ensures uniform and neat paper/paper board passage
Bead cutter for edge trimming
Corona treatment on paper surface increases PE and paper peeling strength
Rewinder includes rewinding stand, tension control system, splicing device, and towing device
Tension control system ensures constant rewinding tension

Laminating Equipment Specifications

Form:	Three Roll Lamination
Chill roll diameter	Ø800mm
Chill roll surface:	Mirror and Matte
Chill roll internal flow-path:	Multi-head propeller
Pressure roll diameter:	Ø300mm
Covered materials:	Composite rubber
Back roll diameter:	Half mirror
Back roll internal flow-path:	Passageway filled with cooling water
Speed reducer:	Worm
Composite driving motor	Inverter motor (11KW)
Power supply:	380V, 50HZ

Double Station Unwinder Features

Applies to multiple materials with wide range of uses
Automatically changes rolls without stopping machine or reducing speed
Features one-button and no-button type operation for simplicity and convenience
Compact design saves production space

"Professional qualifications to create brand" is Laiyi's business objective!
"Create excellence by quality, provide service with honesty" is Laiyi's business purpose!
