PLC Control Siemens Motor 250m/Min Film Laminating Machine

PLC Control Siemens Motor 250m/Min Film Laminating Machine

MOQ: 1 set
Price: USD100,000-800,000/set
Standard Packaging: Seaworthy packing
Delivery Period: 18-30weeks
Payment Method: T/T, L/C
Detail Information
Place of Origin
CHINA
Brand Name
LAIYI
Certification
CE ISO9001
Type::
Laminating Machine
Color::
White And Blue
Material::
Alloy Steel
Voltage::
By Customer
Water Temperature::
15~25℃
Air Pressure::
0.6~0.9MPa
Extruder Motor::
Siemens Brand
Die Model::
T-die
Condition::
New
Controlling System::
Full Computer
Driven Type::
Mechanical
Warranty::
One Year
Life Time::
More Than 10 Years
After Sales Service::
Engineers Availble To Service Machinery Overseas
Minimum Order Quantity:
1 set
Price:
USD100,000-800,000/set
Packaging Details:
Seaworthy packing
Delivery Time:
18-30weeks
Payment Terms:
T/T, L/C
High Light:

Siemens Motor Film Laminating Machine

,

PLC Control Film Laminating Machine

,

250m/min Film Laminating Machine

Product Description




PLC control Siemens motor brand film laminator



Main constructions:



1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible.



Specification:





Item LY-ACP2-1200 LY-ACP2-1400 LY-ACP2-1700 LY-ACP2-2200 LY-ACP2-2500
Effective laminating width: max1100mm max1300mm max1600mm max2100mm max2400mm
Machine speed: 200-250m/min
Screw diameter: φ80mm,φ90mm,φ100mm,φ110mm
Max unwinder&rewinder diameter: φ800mm
Max output: 180kg/h,200kg/h,300kg/h or 400kg/h
Coated resins: LLDPE/LDPE/PP/EVA/EAA
Laminating thickness range: 8-45μm
Base material: Aluminium foil/ Non-woven fabric /Metalized film/ BOPP/ BOPET/ BOPA,etc(10-200gsm)



Compound machine

  • The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
  • Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.



Extruder

  • Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.
  • Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.
  • The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.

​Bead cutter equipment

  • Shrink-width makes two sides thicker, as a result, the two sides of the composite material need to be trimmed, otherwise the composite material will have some quality problems such as drape, crimp and unevenness.
  • It is convenient to renew cutter and adjust effective width. It can save time and labor at the same time, and makes the products flat and smooth.

The pre-treat unit

  • The pre-treatment includes corona treatment and static elimination on the surface of base materials. Especially in extrusion coating process, corona treatment is needed to assist molten web to permeate into the pores or cottony gaps on the surface of base materials under the pressure of pressure roll, improving the adhension between coating film and base materials.
  • Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.
  • The corona machine is equipped with work condition indicating lamp, oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat,hyper-charger, breakdown and corona lost, and works with high-efficiency and low-consumption.

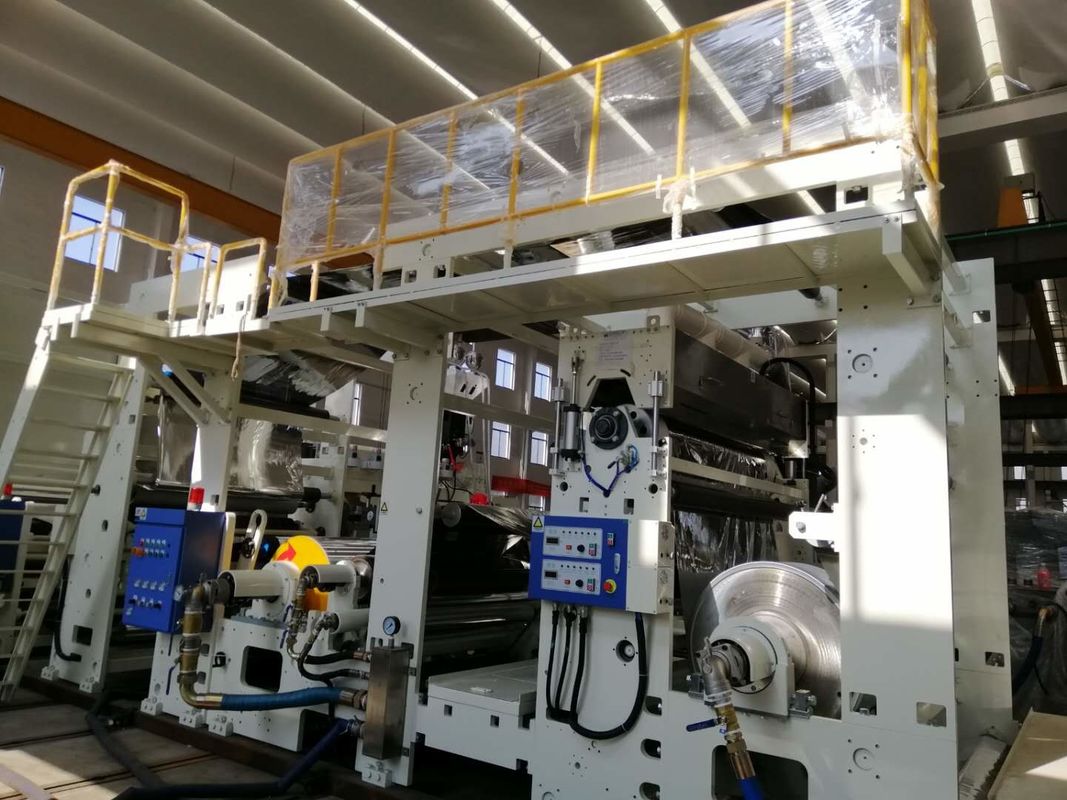

PLC Control Siemens Motor 250m/Min Film Laminating Machine 0







" Professional qualifications to create brand" is Laiyi's business objective!



"Create excellece by quality, prvide service with honesty" is



Laiyi's business prupose!

products
PRODUCTS DETAILS
PLC Control Siemens Motor 250m/Min Film Laminating Machine
MOQ: 1 set
Price: USD100,000-800,000/set
Standard Packaging: Seaworthy packing
Delivery Period: 18-30weeks
Payment Method: T/T, L/C
Detail Information
Place of Origin
CHINA
Brand Name
LAIYI
Certification
CE ISO9001
Type::
Laminating Machine
Color::
White And Blue
Material::
Alloy Steel
Voltage::
By Customer
Water Temperature::
15~25℃
Air Pressure::
0.6~0.9MPa
Extruder Motor::
Siemens Brand
Die Model::
T-die
Condition::
New
Controlling System::
Full Computer
Driven Type::
Mechanical
Warranty::
One Year
Life Time::
More Than 10 Years
After Sales Service::
Engineers Availble To Service Machinery Overseas
Minimum Order Quantity:
1 set
Price:
USD100,000-800,000/set
Packaging Details:
Seaworthy packing
Delivery Time:
18-30weeks
Payment Terms:
T/T, L/C
High Light

Siemens Motor Film Laminating Machine

,

PLC Control Film Laminating Machine

,

250m/min Film Laminating Machine

Product Description




PLC control Siemens motor brand film laminator



Main constructions:



1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible.



Specification:





Item LY-ACP2-1200 LY-ACP2-1400 LY-ACP2-1700 LY-ACP2-2200 LY-ACP2-2500
Effective laminating width: max1100mm max1300mm max1600mm max2100mm max2400mm
Machine speed: 200-250m/min
Screw diameter: φ80mm,φ90mm,φ100mm,φ110mm
Max unwinder&rewinder diameter: φ800mm
Max output: 180kg/h,200kg/h,300kg/h or 400kg/h
Coated resins: LLDPE/LDPE/PP/EVA/EAA
Laminating thickness range: 8-45μm
Base material: Aluminium foil/ Non-woven fabric /Metalized film/ BOPP/ BOPET/ BOPA,etc(10-200gsm)

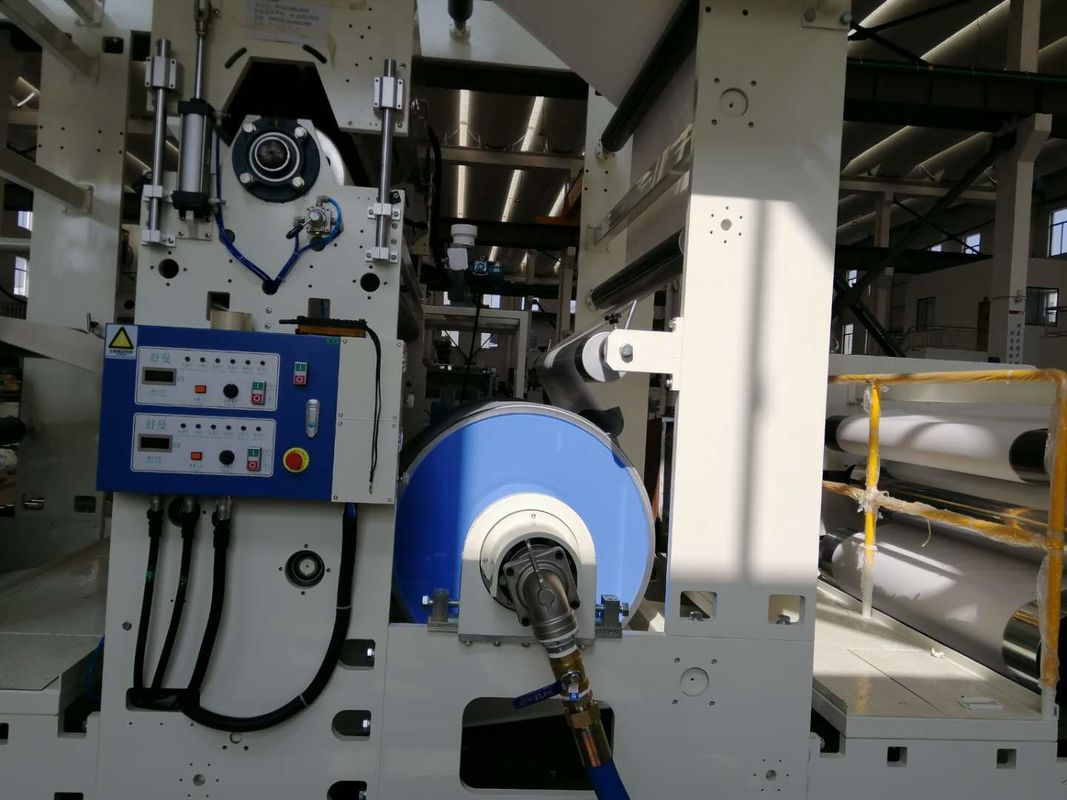

Compound machine

  • The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
  • Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.



Extruder

  • Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.
  • Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.
  • The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.

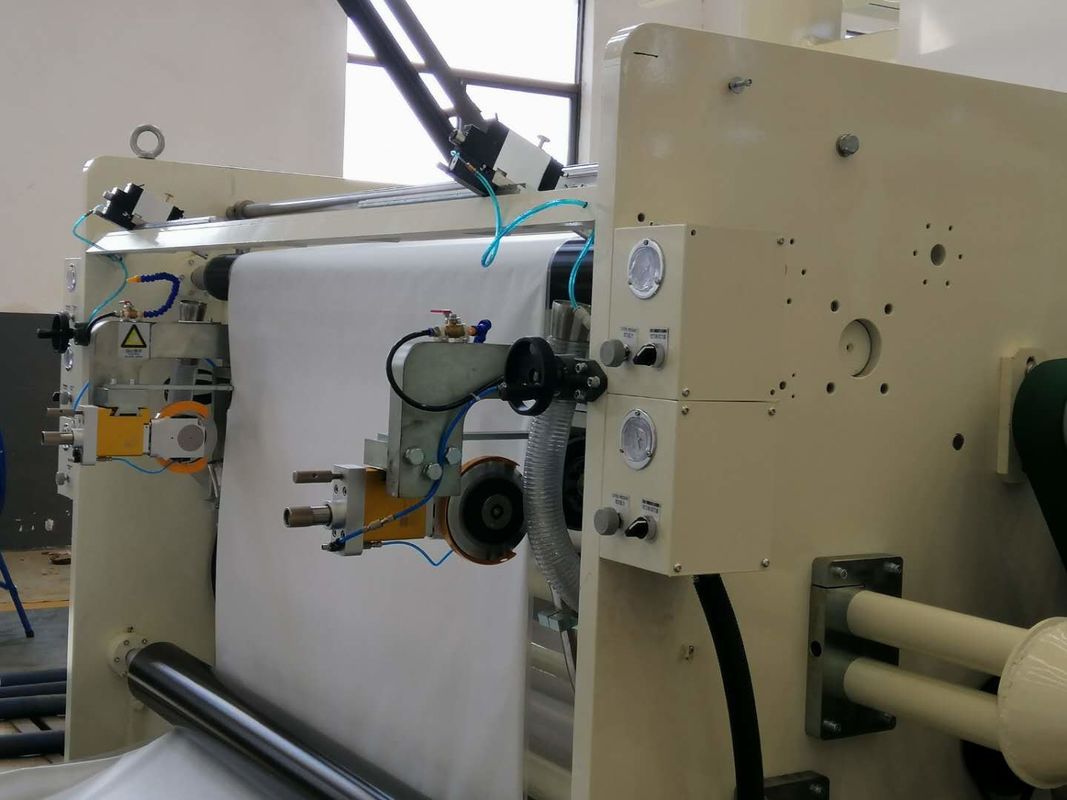

​Bead cutter equipment
