| MOQ: | 1set |
| Price: | $90,000--$450,000/set |
| Standard Packaging: | seaworthy packing |
| Delivery Period: | 5 months |
| Payment Method: | T/T, , L/C |
| Supply Capacity: | 20sets/month |

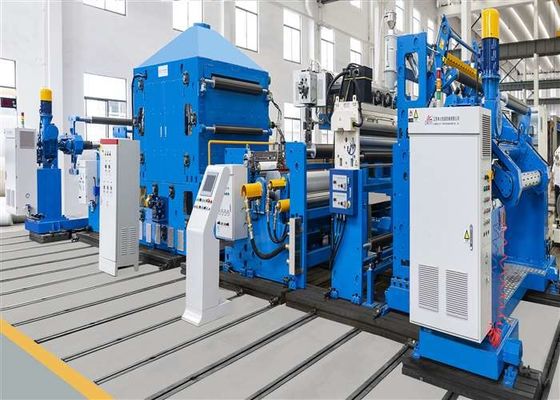

This extrusion laminating machine using the resin , such as LDPE, HDPE, PP, EVA, etc., as raw material, it processes by melting the plastic for extruding form the T-die mould and finally laminating with the base material, this type of machine has been widely used for the lamination of substrates such as paper, non-woven fabric, woven fabric, aluminum foil, BOPP film etc. the finished product is famous for its high fastness, uniformity of thickness and high sealed capability. All these have contribute of make this type of machine become one of the most popular and valuable extrusion laminating machines in domestic market and abroad.
| Technical Parameters: | ||
| Machine | LY-ALF-1200 | LY-ALF-1550 |
| Machine width | 1200MM | 1550MM |
| Effective width | Max1100MM | Max1400mm |
| Machine Speed | 150mtr/min | 150mtr/min |
| Screw diameter | LD-100MM | LD-115MM |
| Extruder output | 250kg/h | 300kg/h |
| Used Resins | LDPE/LLDPE/PP/EVA | LDPE/LLDPE/PP/EVA |
| Coating Thickness | 8-45um | 8-45um |
|
Rewinder/ Unwinder Dia |
Ø800MM |
Ø800MM |
| Basic material | PET films | PET films |
Corona Brand: Sherman
Struction and characteristics:
① The pre-treatment includes corona treatment and static elimination on the surface of base materials.
② Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.
③ The corona machine is equipped with work condition indicating lamp,oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat, hyper-charge, breakdown and corona lost, and works with high-efficiency and low-consumption.
Double station unwinder of Paper Extrusion Laminating Machine:
" Professional qualifications to create brand" is Laiyi's business objective!
"Create excellece by quality, prvide service with honesty" is
Laiyi's business prupose!
