300kg/H 1200mm PET Film Extrusion Laminating Machine

300kg/H 1200mm PET Film Extrusion Laminating Machine

MOQ: 1 set
Price: USD100,000-800,000/set
Standard Packaging: Seaworthy packing
Delivery Period: 18-24weeks
Payment Method: T/T, L/C
Detail Information
Place of Origin
CHINA
Brand Name
LAIYI
Certification
CE ISO9001
Type::
Laminating Machine
Color::
White And Blue
Material::
Alloy Steel
Voltage::
By Customer
Water Temperature::
15~25℃
Air Pressure::
0.6~0.9MPa
Extruder Motor::
Siemens Brand
Die Model::
T-die
Condition::
New
Controlling System::
Full Computer
Driven Type::
Mechanical
Warranty::
One Year
Life Time::
More Than 10 Years
After Sales Service::
Engineers Availble To Service Machinery Overseas
Minimum Order Quantity:
1 set
Price:
USD100,000-800,000/set
Packaging Details:
Seaworthy packing
Delivery Time:
18-24weeks
Payment Terms:
T/T, L/C
High Light:

PET Film Extrusion Laminating Machine

,

1200mm Extrusion Laminating Machine

,

300kg/h Extrusion Laminating Machine

Product Description




1200mm white and blue alloy steel for PET film extrusion laminating machine



Specification:



Machine width 1200mm,1550mm
Effective width Max1100mm,1400mm
Machine speed 150m/min
Screw diameter Φ100mm,Φ115mm
Extruder output Max 250kg/h ,300kg/h
Resins EVA
Coating thickness 8-45μm
Max unwinder and rewinder diameter Φ800mm
Basic material PET film




Main constructions:



1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible.



Double station unwinder:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.

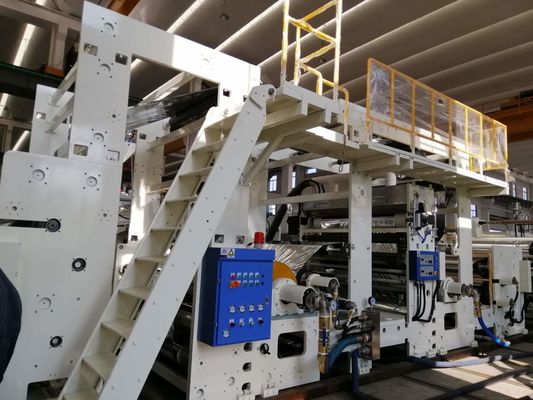

300kg/H 1200mm PET Film Extrusion Laminating Machine 0



Double station rewinder:

  • It can automatically change rolls without stopping machine or reducing speed.
  • It applies to multiple materials and has a wide range of uses, has different way to control tension of different material.
  • It uses suspension type press roller to rewind, the tension of multiple materials can be controlled to guarantee the smooth and beauty of the production surface.

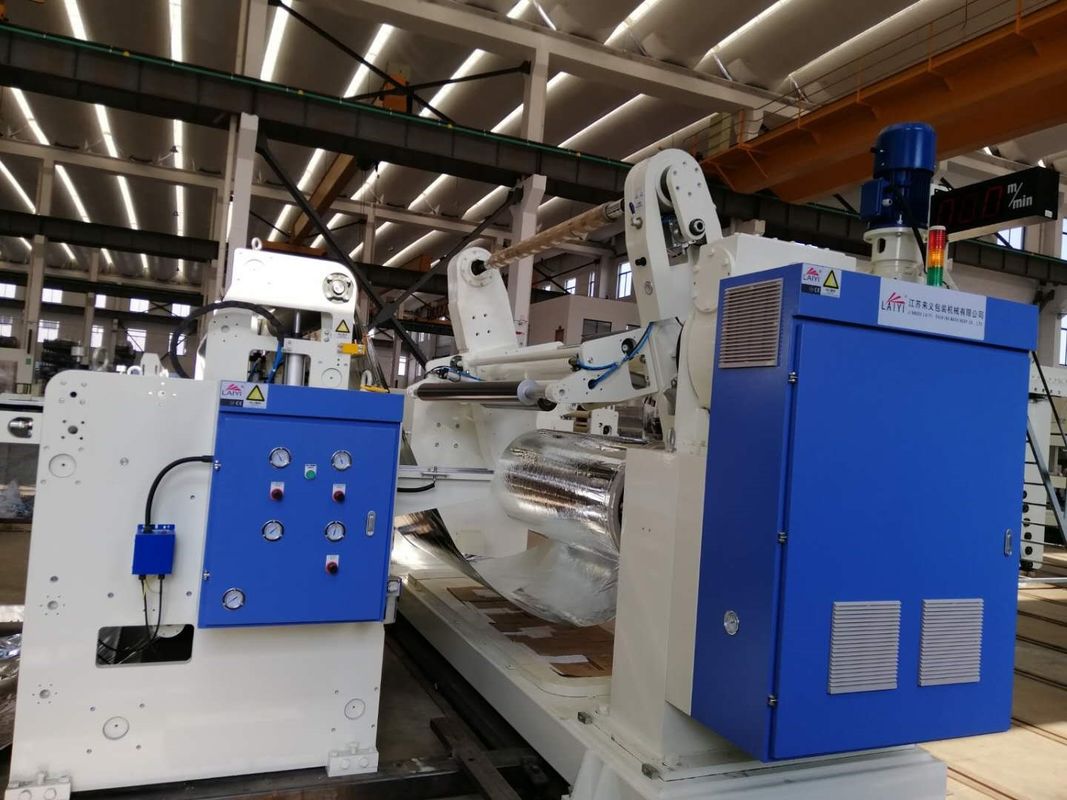

300kg/H 1200mm PET Film Extrusion Laminating Machine 1


Compound machine

  • The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
  • Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.

 300kg/H 1200mm PET Film Extrusion Laminating Machine 2


Extruder

  • Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.
  • Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.
  • The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.

300kg/H 1200mm PET Film Extrusion Laminating Machine 3







FAQ



Q: What's the size of your machine?
A: From 1200mm to 2500mm, we can design and make according to your requirement.

Q: Which machine should I choose?
A: Our extrusion laminating lines cover single side, double sides, muti-layer co-extrusion machines for roll-based paper, films, metalized films, aluminium foil, clothes, woven and non-woven fabric, etc


Q: How to carry out the machine acceptance?
A: After the installation of the machine is finished in our factory, the representive(s) of your company will be invited to inspect the test running before shipment.

Q: Does your machine have alarm devices?
A: Of course, we have warning lights in each part of our machine for paper break alarm and fault alarm.

Q: How can I install the machine?
A: Our engineers will provide service overseas after you received the shipped machine.





Pls feel free to contact us as below:
300kg/H 1200mm PET Film Extrusion Laminating Machine 4





" Professional qualifications to create brand" is Laiyi's business objective!



"Create excellece by quality, prvide service with honesty" is



Laiyi's business prupose!
