EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control
  • name
  • name
  • name
  • name

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control

MOQ: 1set
Price: $90,000--$450,000/set
Standard Packaging: seaworthy packing
Delivery Period: 5 months
Payment Method: T/T, , L/C
Supply Capacity: 20sets/month
Detail Information
Product Description
Detail Information
Place of Origin
Changzhou, China
Brand Name
LAIYI
Certification
CE , ISO9001
Model Number
LY-ASRP100-1400
Machine Model:
LY-ASRP100-1400
Type::
Laminting Machine
Die Model::
T-die（Brand B）
Voltage::
380V 3PH 50HZ
Basic Material::
Paper(35-250gsm)
Resins::
LDPE/LLDPE/PP/EVA
Controlling System::
Full Computer (PLC Control)
Length Of Machine:
L*W*H=19.2/13.2*(9.5-12)*4.5m
Warranty::
One Year
Afer Sales Service::
Engineers Availble To Service Machinery Overseas
Life Time::
More Than 10 Years
Color::
White And Blue
Machinery Speed:
350mtr/min
Production Speed:
300mtr/min
Corona Brand:
Sherman
Minimum Order Quantity:
1set
Price:
$90,000--$450,000/set
Packaging Details:
seaworthy packing
Delivery Time:
5 months
Payment Terms:
T/T, , L/C
Supply Ability:
20sets/month
High Light:

Single Sided Paper Laminating Machine

,

EVA resin Paper laminator

,

EVA resin PaperLaminating Machine

Product Description



  • Release Paper Extrusion Laminating Machine
  • The MainTechnical Parameter of Release Paper Extrusion Laminating Machine:
Technical Parameters:
Machine  LY-ASRP100-1200 LY-ASRP100-1400 LY-ASRP100-1700
Machine width 1200MM 1400MM 1700MM
Effective width Max1100MM Max1300mm Max1600mm
Machine Speed 300mtr/min 300mtr/min 300mtr/min
Screw diameter LD-100MM LD-100MM LD-100MM
Extruder output 400kg/h 400kg/h 400kg/h
Used Resins LDPE/LLDPE/PP/EVA LDPE/LLDPE/PP/EVA LDPE/LLDPE/PP/EVA
Coating Thickness 8-45um 8-45um 8-45um

Rewinder/

Unwinder Dia

Ø1200MM

Ø1200MM

Ø1200MM
Basic material Paper(35-350g/㎡ Paper(35-350g/㎡ Paper(35-350g/㎡
  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.

Corona Brand: Sherman

​Struction and characteristics:

①The pre-treatment includes corona treatment and static elimination on the surface of base materials.

②Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.

③The corona machine is equipped with work condition indicating lamp,oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat, hyper-charge, breakdown and corona lost, and works with high-efficiency and low-consumption.





EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control 0





  Double station unwinder of Paper Extrusion Laminating Machine:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.

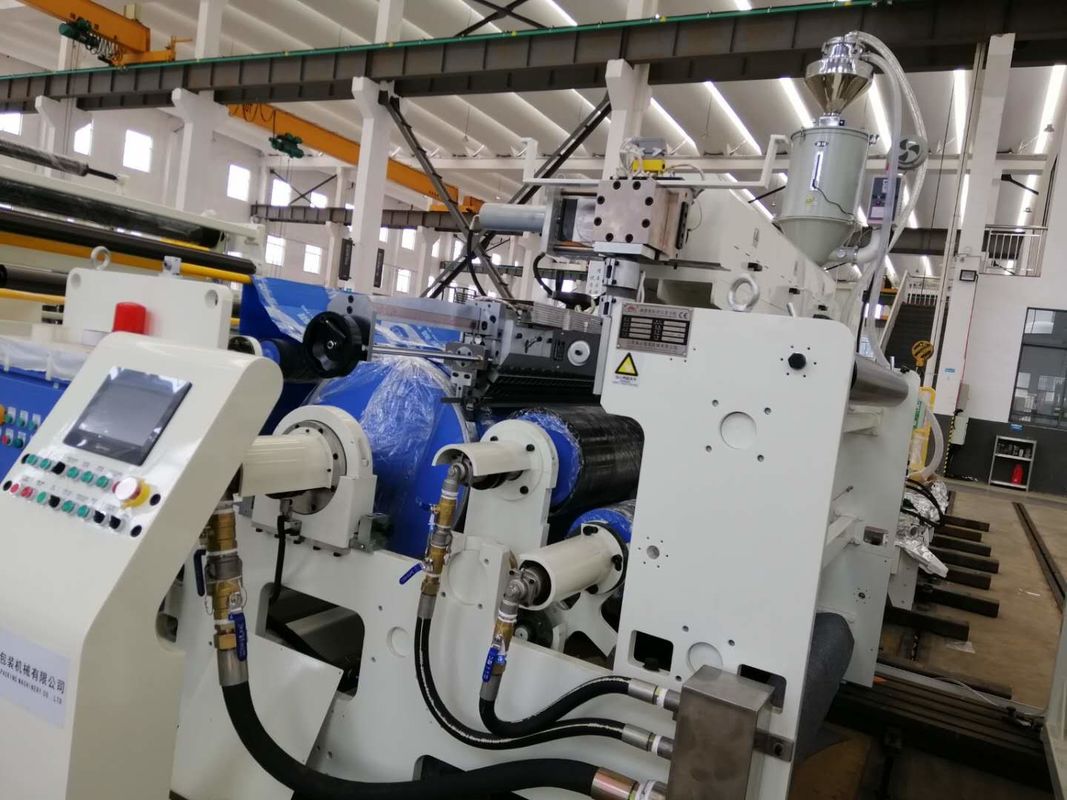

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control 1

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control 2













" Professional qualifications to create brand" is Laiyi's business objective!



"Create excellece by quality, prvide service with honesty" is



Laiyi's business prupose!
