Double Sided 4mm Alloy Steel Paper Laminating Machine LDPE Resins

Double Sided 4mm Alloy Steel Paper Laminating Machine LDPE Resins

  • High Light

    Alloy Steel Paper Laminating Machine


    4mm Paper Laminating Machine


    4mm lamination paper cutting machine

  • Machine Model
  • Type
    Laminting Machine
  • Die Model
  • Motor
    Siemens Brands
  • Voltage
    By Customer
  • Basic Material
  • Resins
  • Controlling System
    Full Computer
  • Length Of Machine
  • Warranty
    One Year
  • Afer Sales Service
    Engineers Availble To Service Machinery Overseas
  • Life Time
    More Than 10 Years
  • Color
    White And Blue
  • Place of Origin
    Changzhou, China
  • Brand Name
  • Certification
    CE , ISO9001
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    seaworthy packing
  • Delivery Time
    5 months
  • Payment Terms
    T/T, , L/C
  • Supply Ability

Double Sided 4mm Alloy Steel Paper Laminating Machine LDPE Resins

Jiangsu Laiyi has been highly recognized and praised in domestic extrusion laminating industry since 2007 and has increasing market share.

As more and more cooperation relationships with foreign enterprises, Jiangsu Laiyi has established a good reputation in the international market.

Jiangsu Laiyi is working on becoming one of the first class packing machinery manufacturers in the world by our professional quality and superior service

Professional extrusion laminating line established by more than 10 years of working can provide long time services for large enterprises both at home and abroad with professional researches.

As a domestic normalized packing machinery manufacturer with strength, who has develpment and technical force, and solid manufactruing and service system, Jiangsu Laiyi has sold more than 600 sets of machines in the world.




Specification of Release Paper Extrusion Laminating Machine :


Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADRP-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)


  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.



Double station unwinder:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.

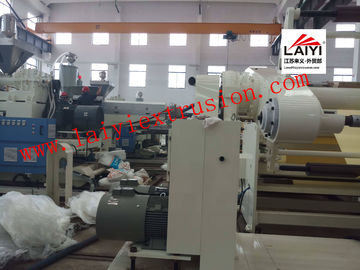

Double Sided 4mm Alloy Steel Paper Laminating Machine LDPE Resins 0







" Professional qualifications to create brand" is Laiyi's business objective!


"Create excellece by quality, prvide service with honesty" is


Laiyi's business prupose!
