| MOQ: | 1set |
| Price: | $90,000--$450,000/set |
| Standard Packaging: | seaworthy packing |
| Delivery Period: | 5 months |
| Payment Method: | T/T, , L/C |
| Supply Capacity: | 20sets/month |

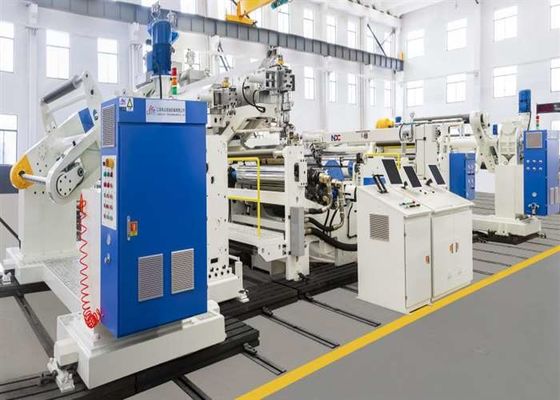

This extrusion laminating machine using the resin , such as LDPE, HDPE, PP, EVA, etc., as raw material, it processes by melting the plastic for extruding form the T-die mould and finally laminating with the base material, this type of machine has been widely used for the lamination of substrates such as paper, non-woven fabric, woven fabric, aluminum foil, BOPP film etc. the finished product is famous for its high fastness, uniformity of thickness and high sealed capability. All these have contribute of make this type of machine become one of the most popular and valuable extrusion laminating machines in domestic market and abroad.
| Technical Parameters: | |||
| Machine | LY-ADT-1200 | LY-ADT-1400 | LY-ADT-1700 |
| Machine width | 1200MM | 1400MM | 1700MM |
| Effective width | Max1100MM | Max1300mm | Max1600mm |
| Machine Speed | 100mtr/min | 100mtr/min | 100mtr/min |
| Screw diameter | LD-100MM | LD-100MM | LD-100MM |
| Extruder output | 300kg/h | 300kg/h | 300kg/h |
| Used Resins | LDPE/LLDPE/PP/EVA | LDPE/LLDPE/PP/EVA | LDPE/LLDPE/PP/EVA |
| Coating Thickness | 8-45um | 8-45um | 8-45um |
|
Rewinder/ Unwinder Dia |
Ø1200MM |
Ø1200MM |
Ø1200MM |
| Base material | cloth | cloth | cloth |
Laminating Equipment
| Form: | Three Roll Lamination |
| Chill roll diameter | Ø700mm |
| Chill roll surface: | Mirror and Matte |
| Chill roll internal flow-path: |
Multi-head propeller Passageway filled with cooling water |
| Pressure roll diameter: | Ø300mm |
| Covered materials: | Composite rubber |
| Back roll diameter: | Half mirror |
| Back roll internal flow-path: | Passageway filled with cooling water |
| Speed reducer: | Worm |
| Composite driving motor | Inverter motor(11KW) |
| Power supply: | 380V,50HZ |
Double station unwinder of Duct Tape Extrusion Laminating Machine:
T-Die
" Professional qualifications to create brand" is Laiyi's business objective!
"Create excellece by quality, prvide service with honesty" is
Laiyi's business prupose!
|
|
