EAA  200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric

EAA 200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric

  • High Light

    200kg/h extrusion coating lamination machine

    ,

    EAA extrusion coating lamination machine

    ,

    200kg/h extrusion coating line

  • Machine Model
    LY-ACP115-1700
  • Type
    Laminting Machine
  • Die Model
    T-die
  • Voltage
    380V 3PH 50HZ
  • Basic Material
    Paper(35-250gsm)
  • Resins
    LDPE/LLDPE/PP
  • Controlling System
    Full Computer (PLC Control)
  • Length Of Machine
    L*W*H=19.55X(9.5~14)X4.7m
  • Warranty
    One Year
  • Afer Sales Service
    Engineers Availble To Service Machinery Overseas
  • Life Time
    More Than 10 Years
  • Color
    White And Blue
  • Machinery Speed
    350mtr/min
  • Production Speed
    300mtr/min
  • Corona Brand
    Sherman
  • Weight
    38t
  • Place of Origin
    Changzhou, China
  • Brand Name
    LAIYI
  • Certification
    CE , ISO9001
  • Model Number
    LY-ACP115-1700
  • Minimum Order Quantity
    1set
  • Price
    $90,000--$450,000/set
  • Packaging Details
    seaworthy packing
  • Delivery Time
    5 months
  • Payment Terms
    T/T, , L/C
  • Supply Ability
    20sets/month

EAA 200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric



  • Color Printing Packaging Multi-layer Co-extrusion Laminating Machine

This extrusion laminating machine using the resin , such as LDPE, HDPE, PP, EVA, etc., as raw material, it processes by melting the plastic for extruding form the T-die mould and finally laminating with the base material, this type of machine has been widely used for the lamination of substrates such as paper, non-woven fabric, woven fabric, aluminum foil, BOPP film etc. the finished product is famous for its high fastness, uniformity of thickness and high sealed capability. All these have contribute of make this type of machine become one of the most popular and valuable extrusion laminating machines in domestic market and abroad.


  • The MainTechnical Parameter of Color Printing Packaging Multi-layer Co-extrusion Laminating Machine
Technical Parameters:
Machine width 1200/1400/1700/2200/2500mm
Effective width 1100/1300/1600/2100/2400mm
Machine speed 200~250m/min
Screw diameter LD-80mm to LD-115mm
Extruder output 180kg/h, 200kg/h, 300kg/h or 400kg/h
Used resins Coated resins like LDPE/LLDPE/PP/EVA/EAA
Coating thickness 5~45um
Max diameter Unwinder&rewinder:φ800mm
Sandwich diameter Max φ600mm
Sandwich material CPE/CPP/PET/Aluminium foils
Basic material

Aluminium foil/Non-woven fabric/Metalized film

BOPP/BOPET/BOPA, etc(10-200gsm)

Dimension(L*W*H) Mono extrusion:11.65x(9.5~14)x3.8m
  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.



Laminating Equipment

Form: Three Roll Lamination
Chill roll diameter Ø700mm
Chill roll surface: Mirror and Matte
Chill roll internal flow-path:

Multi-head propeller

Passageway filled with cooling water

Pressure roll diameter: Ø300mm
Covered materials: Composite rubber
Back roll diameter: Half mirror
Back roll internal flow-path: Passageway filled with cooling water
Speed reducer: Worm
Composite driving motor Inverter motor(11KW)
Power supply: 380V,50HZ

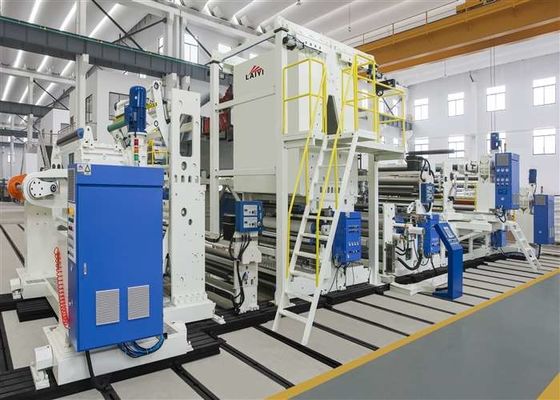

EAA  200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric 0





  Double station unwinder of Duct Tape Extrusion Laminating Machine:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.



EAA  200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric 1



T-Die

EAA  200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric 2















" Professional qualifications to create brand" is Laiyi's business objective!



"Create excellece by quality, prvide service with honesty" is



Laiyi's business prupose!

EAA  200kg/H Extrusion Coating Lamination Machine For Non Woven Fabric 3
