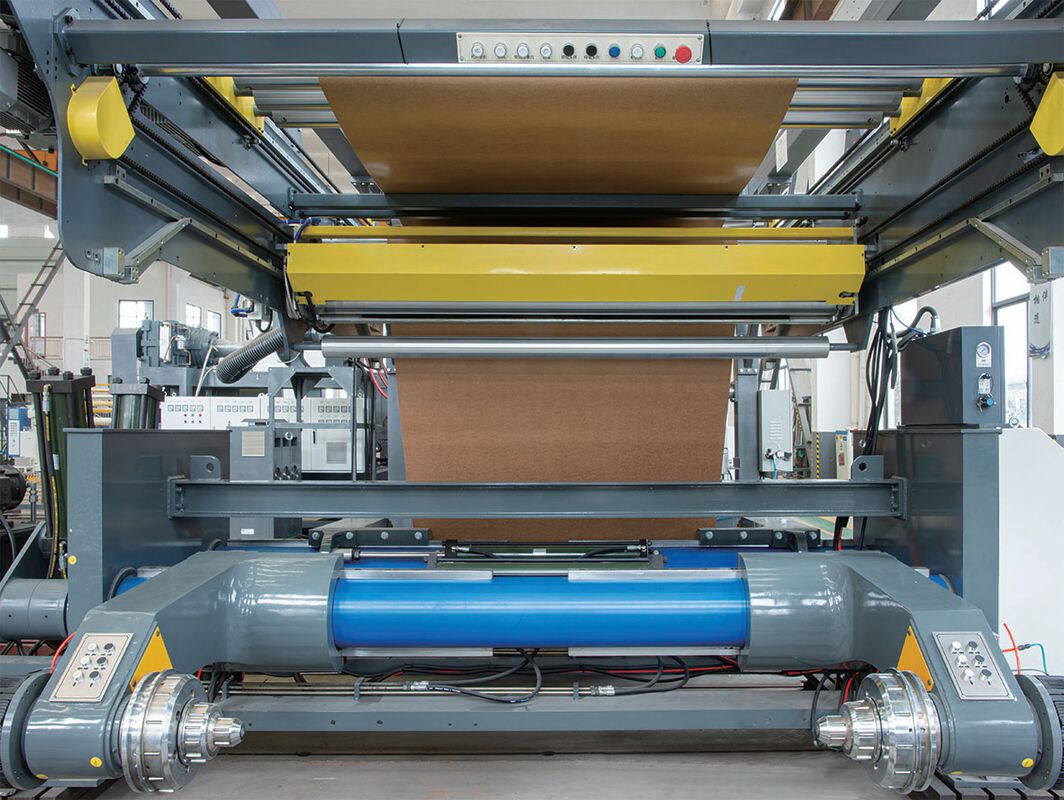

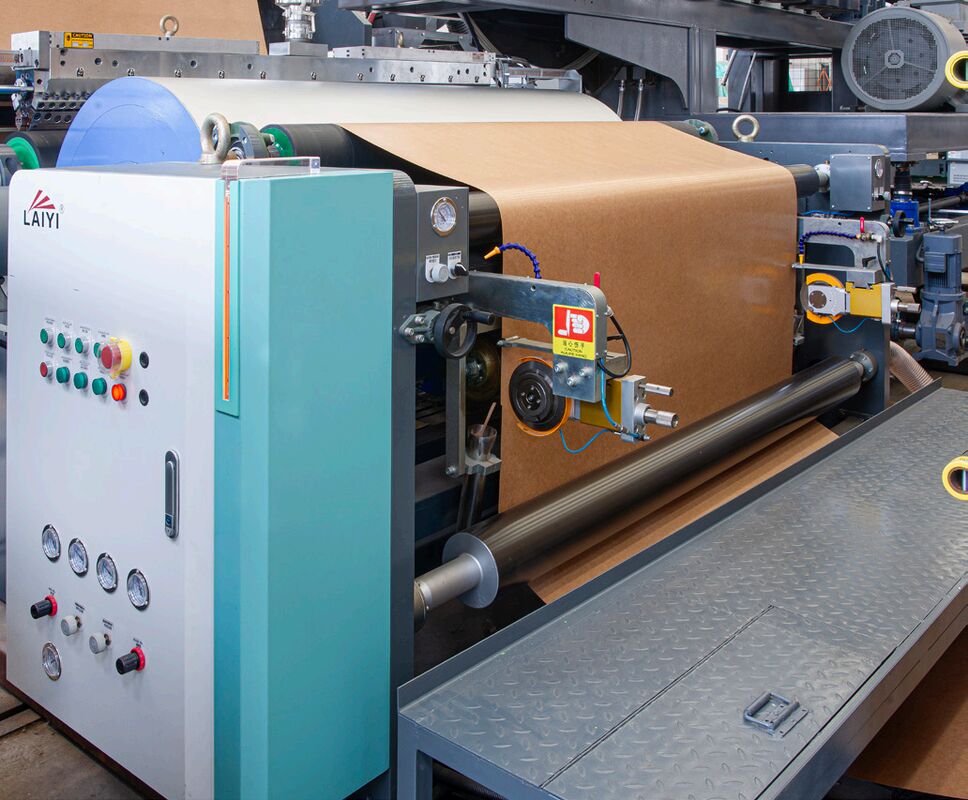

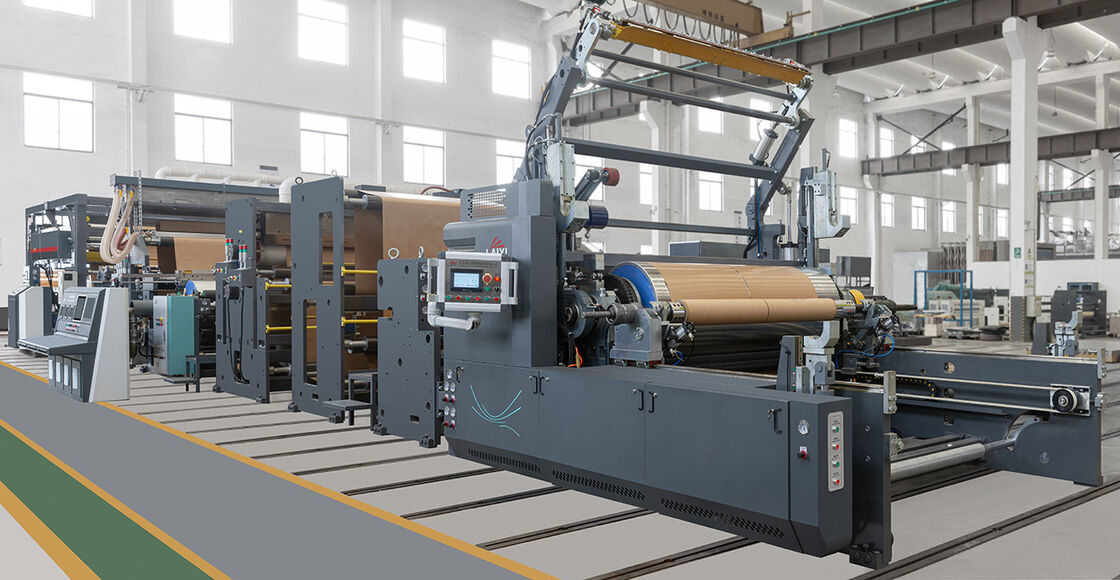

Full Automatic Paper Cup Extrusion Laminating Machine

• Automatic Tension & Web Guiding: Equipped with high-precision EPC (Edge Position Control) and automatic tension management to prevent paper wrinkle and misalignments.

• Double-Station Shaftless Unwinder/Rewinder: Enables non-stop high-speed roll changing, significantly boosting overall production efficiency.

• Corona Pre-Treatment System: Built-in surface corona treatment enhances surface energy for high-strength film adhesion.

• PLC Touchscreen Control: Intuitive interface with centralized control, real-time diagnostic monitoring, and recipe storage.

Paper Cup Manufacturing

• Uses LAIYI patented screw with high revolving speed, high shear, high mixing, wear-resistant and energy-saving characteristics, ensuring temperature difference between die lips and polymer less than 30°C, greatly enhancing peeling strength
• Barrel inner wall and screw surface centrifugally cast with special technology for corrosion and wear resistance, typically lasting three times longer than ordinary screws
• Shaftless unwinder with auto-splicer enables butt-to-butt splicing, reducing damage to corona and laminating rolls
• Heavy duty roll-pressing rewinder achieves up to 300m/min auto-splicing with neat paper reel sides
• Optional automatic shaft pulling system improves robotic level and reduces dependence on manual operation
• Equipped with international first-class electrical brands for efficient and stable electrical system operation
