China Top Factory|Grid Release Film Extrusion Laminating Machine

China Top Factory|Grid Release Film Extrusion Laminating Machine

Place of Origin:

Jintan,Jiangsu,China

Brand Name:

Laiyi

Certification:

CE

Model Number:

LY_AGRF

Contact Us
Request A Quote
China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine China Top Factory|Grid Release Film Extrusion Laminating Machine
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1Set
Packaging Details
Sea worthy packaging
Delivery Time
90-150 days
Payment Terms
L/C,T/T
Supply Ability
Max 20sets per month
Related Products
Good price Top Factory| Laminating Film Extrusion Laminating Machine online

Top Factory| Laminating Film Extrusion Laminating Machine

Get Best Price
Good price PE EVA Coating PET Film 1550mm Double Sided Laminating Machine online

PE EVA Coating PET Film 1550mm Double Sided Laminating Machine

Get Best Price
Good price High Value High Function Film Extrusion Laminating Machine online

High Value High Function Film Extrusion Laminating Machine

Get Best Price
Good price High Value Laminating Film Extrusion Laminating Machine online

High Value Laminating Film Extrusion Laminating Machine

Get Best Price
Contact Us
+8613482267590
xgs7613@laiyiextrusion.com
Contact Now
Product Description
China Top Factory | Grid Release Film Extrusion Laminating Machine
Technical Specifications
Product Width 1100mm / 1300mm / 1600mm / 1800mm / 2000mm
Substrate PET Film
Polymer LDPE / LLDPE / HDPE / PP
Machinery Speed Max 300m/min
Unwind Diameter φ1200mm
Rewind Diameter φ1300mm
Machine Components

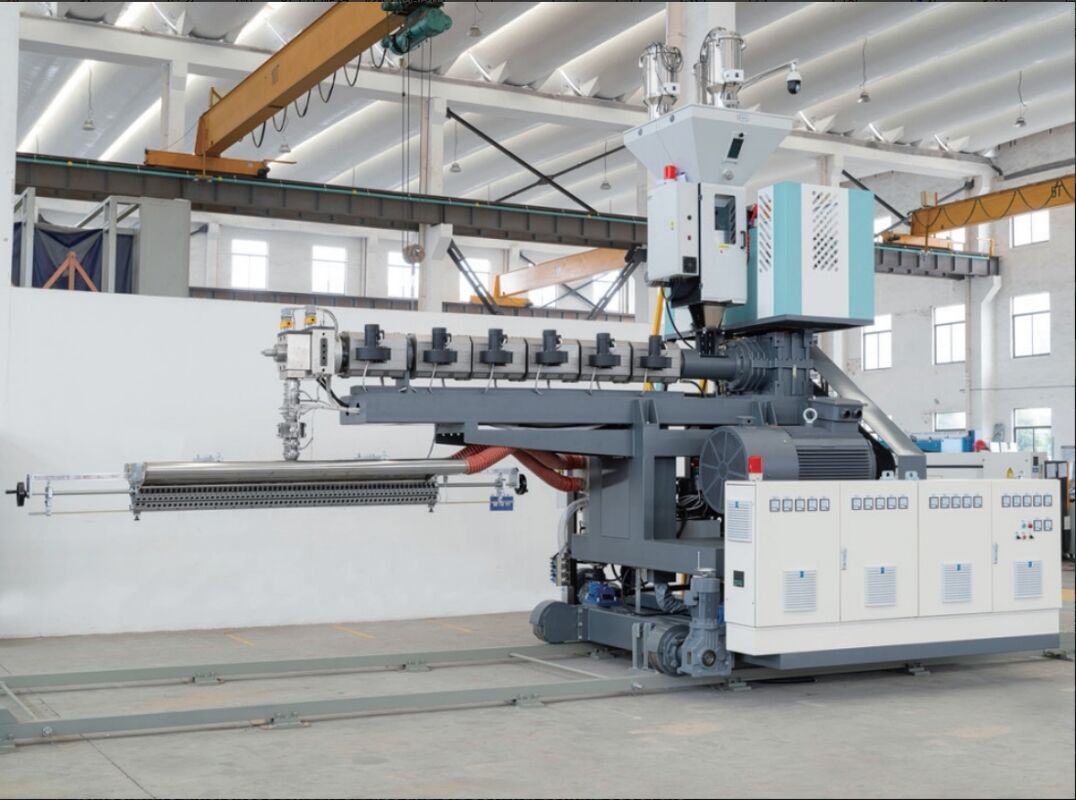

High-Performance Extrusion System

The machine is equipped with a high-efficiency screw extruder that provides excellent plasticizing performance, stable melt pressure, and uniform resin flow for high-quality coating results.

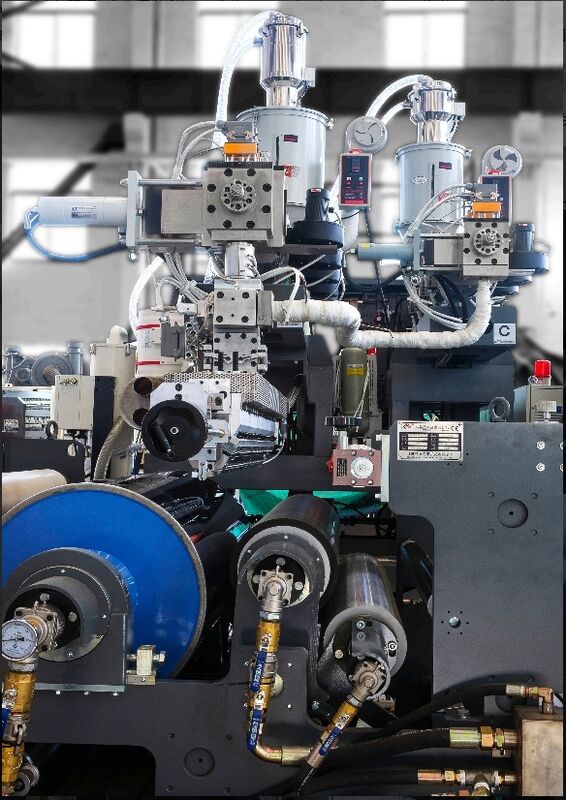

Precision T-Die Technology

A precision-engineered T-die ensures even resin distribution across the full web width, delivering accurate coating thickness and minimizing material waste.

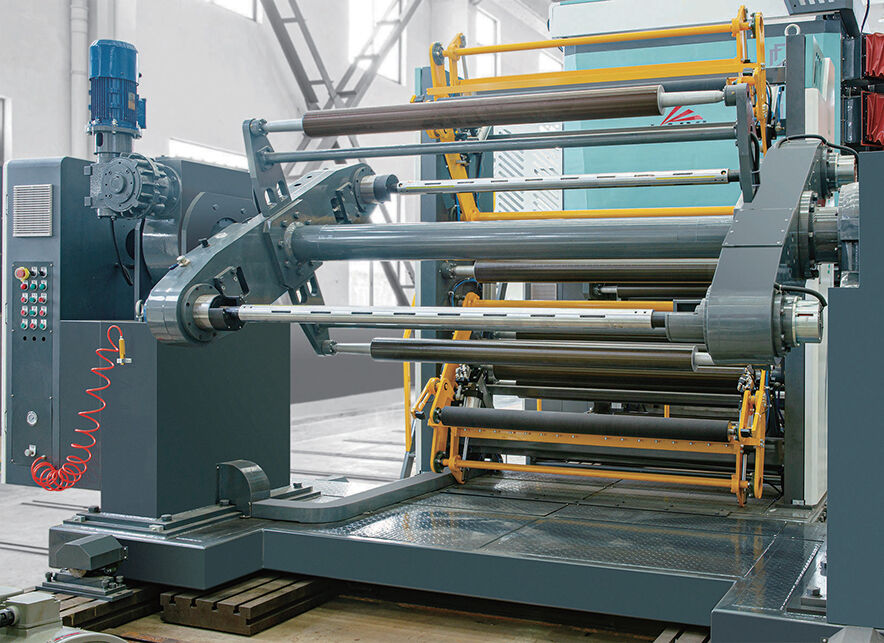

Advanced Web Handling System

The machine features automatic unwinding and rewinding systems with precise tension control, ensuring smooth material transportation and wrinkle-free operation.

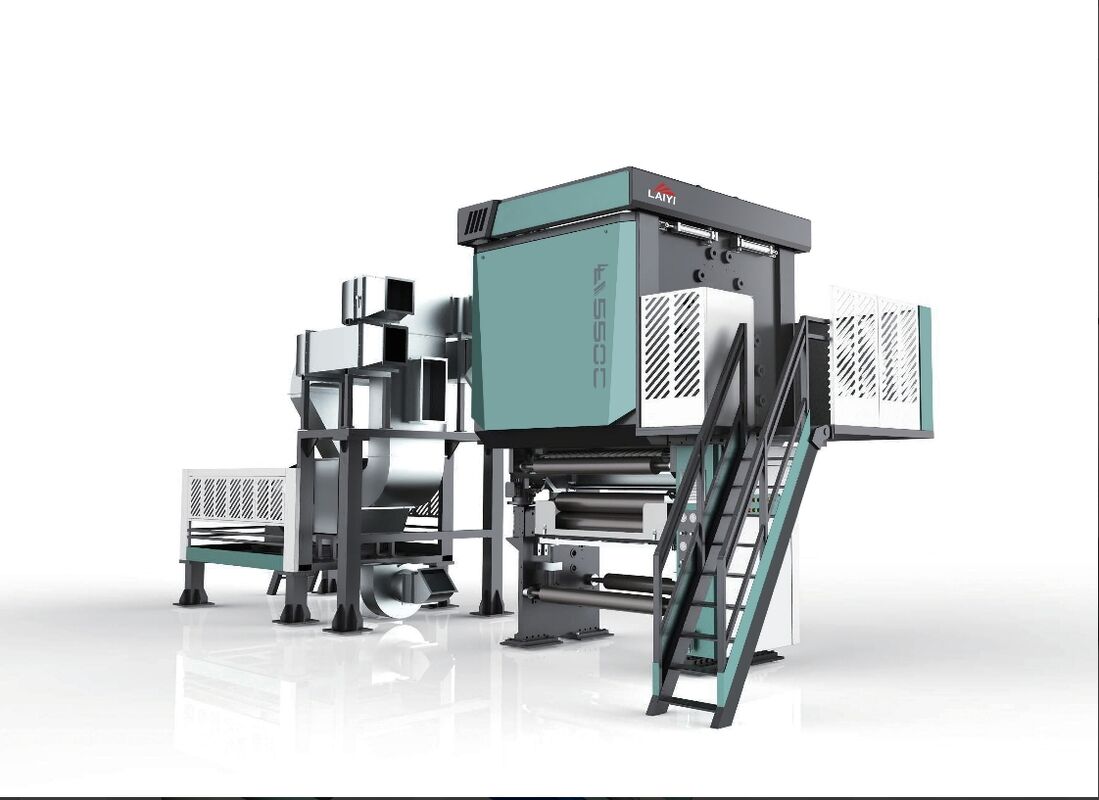

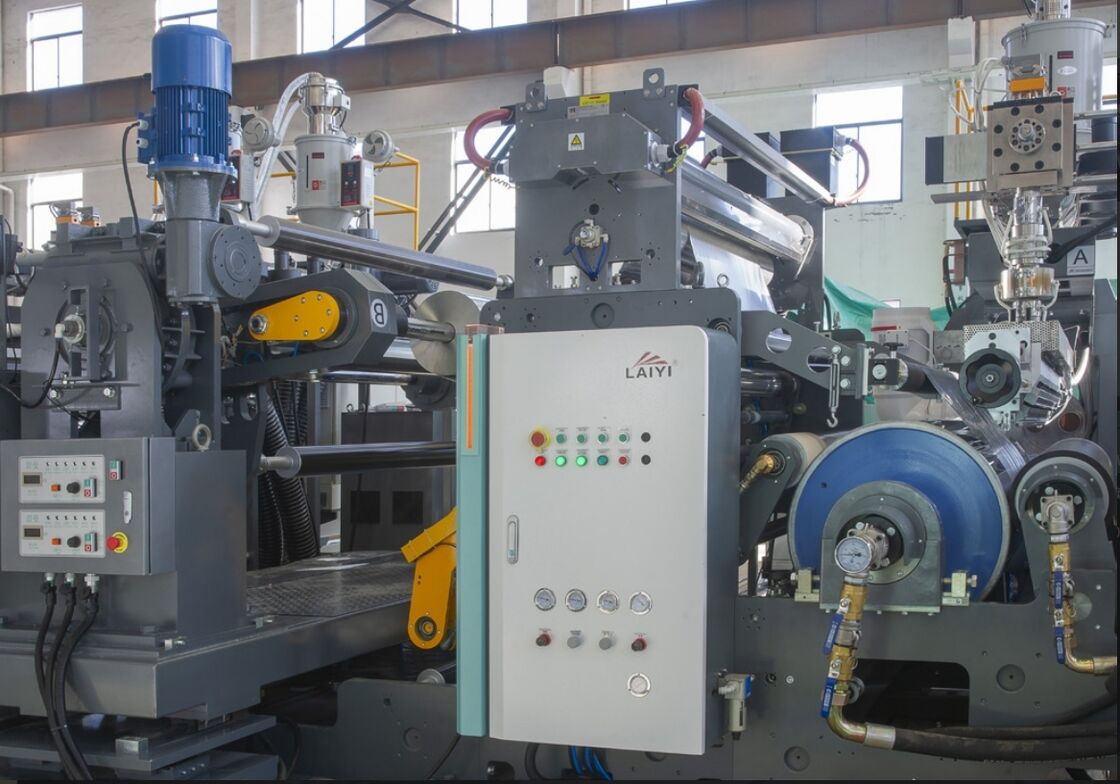

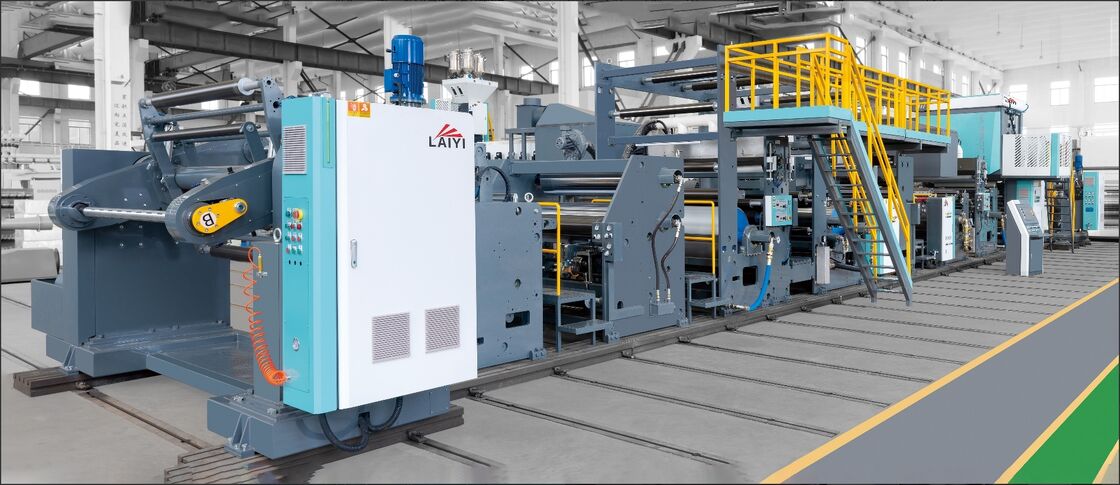

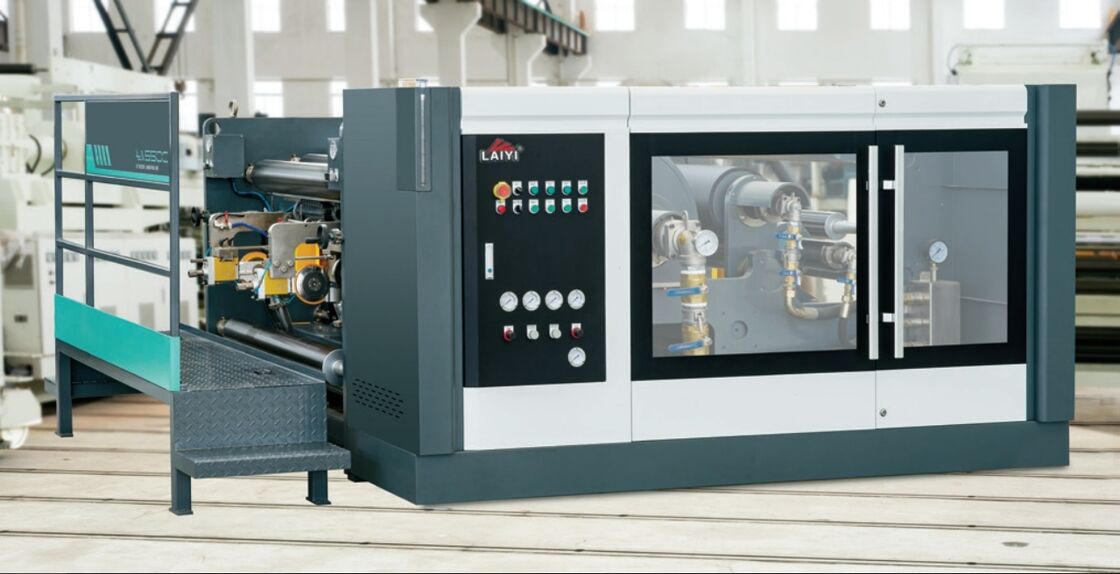

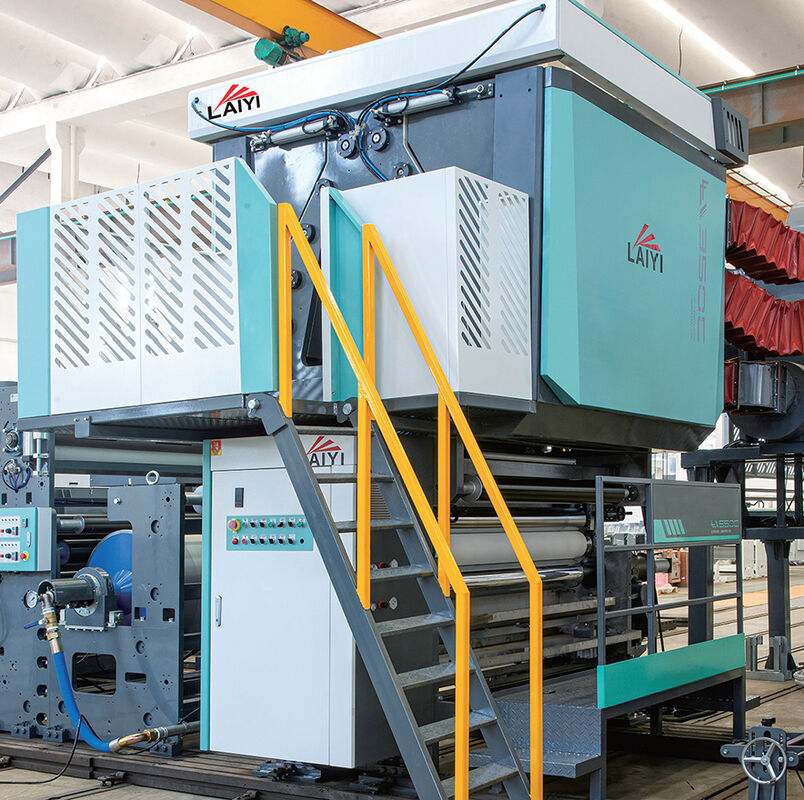

Extrusion laminating machine component view 1
Extrusion laminating machine component view 2
Extrusion laminating machine component diagram 1
Extrusion laminating machine component diagram 2
Extrusion laminating machine component diagram 3
Extrusion laminating machine component view 3
Performance & Advantages
  • Utilizes LAlYl patented screw technology with high revolving speed, high shear, and high mixing capabilities for superior performance
  • Maintains temperature difference between die lips and polymer below 30°C, significantly enhancing peeling strength
  • Features centrifugally cast alloy layer on barrel inner wall and screw surface for 3x longer service life compared to standard screws
  • Advanced automatic splicing capability at full 300m/min speed without line speed reduction
  • Wear-resistant and energy-efficient design for reduced maintenance and lower operating costs
Applications
Extrusion laminating machine application example 1
Extrusion laminating machine application example 2
Extrusion laminating machine application example 3
