MOQ: | 1 set |
Price: | $70,000-200,000 |
Standard Packaging: | Sea worthy packaging |
Delivery Period: | 90-150 days |
Payment Method: | L/C , T/T |
Supply Capacity: | Max 20sets per month |

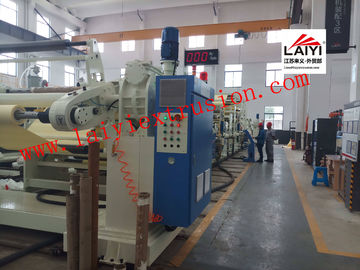

High Efficiency Pp/Pe Double Sided Laminating Machine With Auto Splicer Device
1. Cup Paper Extrusion Laminating Machine
Technical parameters
Machine width | 1200/1400/1700mm | |
Effective width | Max 1100/1300/1600mm | |
Machine speed | 300m/min | |
Screw diameter | LD-100mm/LD-115mm | |
Extruder output | Max 400kg/h or 550kg/h | |
Used resins | Coated resins like LDPE/PP/PBS/PLA | |
Coating thickness | 8-45μm | |
Maxdiameter | Unwinder:Φ1500mm;Rewinder:Φ1800mm | |
Basic material | Paper(100-400gsm) | |
Dimension(L*W*H) |
Single:21.5*(9.5-11)*3.8m |
Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.
Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.
1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .
2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed
3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple
4) Hydraulic lamination structure design , can make coating thinner and firm .
5) Trimming device make the finished coated paper rolls even
6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
