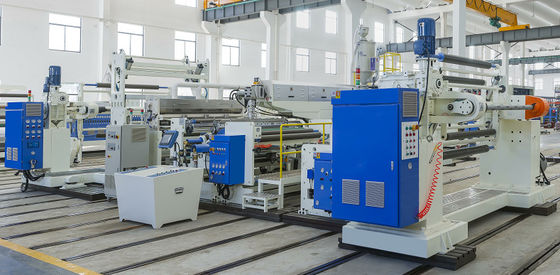

Automatic Extrusion Laminator 400kg/h 8-45gsm Coating Machine

This machine features double shaft-less paper roll stands suitable for 3~6 inch paper cores, with automatic lift for easier operation. The auto splicer device enables paper exchange at 150-300m/min speed without decreasing machine line speed. Ultrasonic type EPC system simplifies frequent material replacement operations. Hydraulic lamination structure ensures thinner and firmer coating. Trimming device produces even finished coated paper rolls. Special cutting knife and rewinder design allows high-speed rewinding shafts exchange.

• Applies to multiple materials with wide range of uses
• Automatically changes rolls without stopping machine or reducing speed
• Features one-button and no-button type operation for simplicity and convenience
• Compact design saves production space

• Automatically changes rolls without stopping machine or reducing speed
• Applies to multiple materials with different tension control methods
• Uses suspension type press roller to rewind, controlling tension for smooth production surface

• Consists of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, and wheelwork pneumatic device
• Key device for extrusion lamination/coating with functions of composite, cooling and shaping
• Features external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel for superior cooling and composite results

• Trims thicker sides of composite material to prevent quality issues
• Easy cutter renewal and width adjustment saves time and labor
• Ensures flat and smooth finished products
