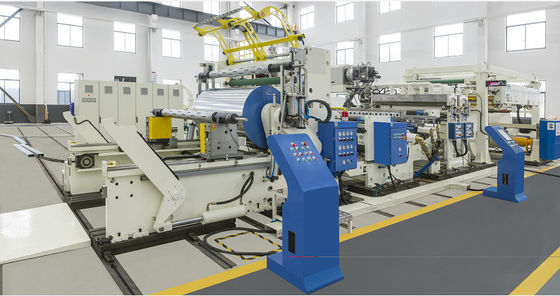

Cooling Roller Adhesive 300m min 1600mm Coating Lamination Machine

Cooling Roller Adhesive 300m min 1600mm Coating Lamination Machine

  • High Light

    300m min Coating Lamination Machine


    1600mm Coating Lamination Machine


    300m min Extrusion Coating Lines

  • Type
    Coating Machine
  • Condition
  • Model
  • Driven Type
  • Voltage
    By Customer
  • Lifetime
    More Than 10 Year
  • Water Tempeture
  • Air Pressure
  • Warranty
  • Using Time
    More Than 10years
  • After Sales Service
    Engineers Avaiable To Service Machnery Oversea
  • Place of Origin
  • Brand Name
  • Certification
    CE, ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Sea worthy packaging
  • Delivery Time
    90-150 days
  • Payment Terms
    L/C , T/T
  • Supply Ability
    Max 20sets per month

Cooling Roller Adhesive 300m min 1600mm Coating Lamination Machine

Colling roller new customized paper bowl adhensive coating machine


Jiangsu Laiyi Packing Machinery Co., Ltd. is one of the industry leaders in extrusion lamination. With 14 years history and a production capacity over 60 lines per year, it is highly recognized by the domestic and aboard customers.We aim to continue investing in state-of-the-art manufacturing technologies and promoting our tradition of innovation and exceptional service, to achieve customer satisfaction.

This machine with double shaft-less paper roll stands,suit for 3~6 inch paper core, automatic lift and easier operation. the suto splicer device realize paper in 150-300m/min speed exchange without decrease machine line speed. Ultrasonic type EPC system, makes frequent replacement materials operation more simple. Hydraulic lamination structure make coating thinner and firm. Trimming device make the finished coated paper rolls even. Special cuttion knife and rewinder design makes high speed rewinding shafts exchange possible.





Item: LY-ASCP-1200/1400/1700

Effective laminating width: Max:1100mm/1300mm/1600mm

Machinery speed:300m/min

Screw diameter:φ100mm/φ110mm

Max output:400kg/h

Max unwinder diameter:φ1500mm

Max rewinder diameter:φ1800mm

Laminating range:8μm~45μm

Power supplier:380V-50HZ(3phase-5wires)



  • Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.
  • Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.
  • The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.


Cooling Roller Adhesive 300m min 1600mm Coating Lamination Machine 0


Compound machine

  • The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
  • Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.

Cooling Roller Adhesive 300m min 1600mm Coating Lamination Machine 1


​Bead cut equipment

  • Shrink-width makes two sides thicker, as a result, the two sides of the composite material need to be trimmed, otherwise the composite material will have some quality problems such as drape, crimp and unevenness.
  • It is convenient to renew cutter and adjust effective width. It can save time and labor at the same time, and makes the products flat and smooth.

Cooling Roller Adhesive 300m min 1600mm Coating Lamination Machine 2


Our Company


Jiangsu Laiyi Packing Machinery Co.,Ltd was founded in 2007 and moved to Jintan District in 2015. The new factory with enlarged scale and advanced technology has improved its brand influence and become the industry leader in the forefront of China with increasing market share in China's extrusion lamination industry.




Laiyi's Values:


Constomer First


Put customer value in our first place,

to provide high-quality goods and service.


Emphasis on technique


Keep on researching core technologies and make contributions to the society.


Challenge the changes


Be dscontent to stand still and challenge all kinds of changes in the future.


people Oriented


Create corporate culture as respecting each other and making progress by learing

from each other.



Company History:


Changzhou Laiyi Plastics machinery Co.,Ltd. was established in 2007 and changed o Jiangsu Laiyi Packing

Machinery Co.,Ltd.2015. The new factory with enlarged scale and advanced technology in the new district has

iimproved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in the China.


Laiyi has provided its own high quality extrusion laminating production line to customers. Laiyi has long-term strategic cooperation relationship with enterprises all over the world and is long-term cooperation supplier of Yongyi Group, Xingyuan Holding Co., Ninbo Asia Paper Co., etc in China and India Uflex Limited, Indonesia Pt. Squar Jaya., etc.


Jiangsu Laiyi has a highly sophisticated technical personnel, wiith high-quality team that can provide comprehensive and timely service to customers. "Professional qualifications to create brand" is Laiyi business objectives. " Create excellence by quality, provide service with honesty" is Laiyi's business purposes. Laiyi seeks for and improves the scientific management based on talent strategy, to face the soceity with its corporate identity as high social responsibility. in the road ahead, Jiangsu Laiyi hopes to confirm your confidence in cooperation better and realize dreams of each other faster by its fast, professional and enthusiastic service.


Our Team


Strong and flexible service capability:


from food package for snacks to liquid package for milk, from aseptic package for cosmetic and medical supplies to package for staionery and electronci products.


we produce indispensable composite films for packing industry from the commodities to the highly sophisticated products.


the extrusion laminating machine of Jiangsu Laiyi has single sided, double sided, and multi-layer co-extrusion type for various papers machinee. the high-quality and stable performance, the widely used compound films can satisfy customers' diversified demand.


Factory Information

  Factory Size: 20,000-40,000 square meters
  Factory Location:

 NO.238 East Jinsheng Road, JinTan District, ChangZhou City, JinagSu Province,China.  Post code : 213200

  No. of Production Lines:
  Contract Manufacturing: OEM /ODMService Offered
  Annual Output Value: US$2 Million - US$3 Million



Main Markets Total Revenue (%)
Domestic Market 40.00%
Mid East 5.00%
South Asia 5.00%
South America 5.00%
Southern Europe 3.00%
Eastern Asia 3.00%
North America 2.00%
Southeast Asia 1.00%
Northern Europe 1.00%
Eastern Europe 1.00%
Oceania 1.00%
Central America 1.00%
Western Europe 1.00%
Africa 1.00%



Total Annual Revenue: US$20 Million
Export Percentage: 20% - 30%



Business Terms


Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, Credit Card, Western Union

Trade Ability



No. of Employees in Trade Department: 3-5 People
Average Lead Time: 30 Day(s)
Export Mode: Using an agent





Q: What's the size of your machine?
A: From 1200mm to 2500mm, we can design and make according to your requirement.

Q: Which machine should I choose?
A: Our extrusion laminating lines cover single side, double sides, muti-layer co-extrusion machines for roll-based paper, films, metalized films, aluminium foil, clothes, woven and non-woven fabric, etc

Q: How to carry out the machine acceptance?
A: After the installation of the machine is finished in our factory, the representive(s) of your company will be invited to inspect the test running before shipment.

Q: Does your machine have alarm devices?
A: Of course, we have warning lights in each part of our machine for paper break alarm and fault alarm.

Q: How can I install the machine?
A: Our engineers will provide service overseas after you received the shipped machine.
