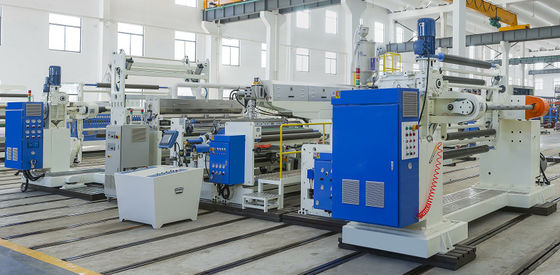

Automated Extrusion Coating Machine 380V 50Hz 250m/min
  • name
  • name
  • name
  • name

Automated Extrusion Coating Machine 380V 50Hz 250m/min

MOQ: 1 set
Price: $100,000-250,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C,T/T
Supply Capacity: Max 20sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Laiyi
Certification
CE, ISO
Model Number
ASP
Type:
Extrusion Coating Line
Condition:
Automaited
Driven Type:
Mechanized
Voltage:
380V 50Hz
Water Tempeture:
15℃~25℃
Pressure:
0.3~0.9MPa
Warranty Time:
1year
Life Time:
More Than 10years
After Sales Service:
Engineers Avaiable To Service Machnery Oversea
Minimum Order Quantity:
1 set
Price:
$100,000-250,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C,T/T
Supply Ability:
Max 20sets per month
Highlight:

Extruder Lamination Coating Machine

,

250m Min Lamination Coating Machine

,

250m Min extrusion laminating

Product Description
LLDPE LDPE PP EVA 250m Min Extruder Lamination Coating Machine
Automatic machinized max 250m/min high speed extruder coating lamination machine. Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines with thorough expertise in co-extrusion of special polymers.
Key Features
  • Customized and modular layout for special product requirements
  • Chill-roll unit with precise temperature control
  • Rapid cooling system for efficient production
  • Special winders and unwinders suitable for any application
  • Double shaft-less paper roll stands for 3~6 inch paper cores
  • Automatic splicer device for material exchange at 150-300m/min
  • Ultrasonic type EPC system for easy material replacement
  • Hydraulic lamination structure for thin, firm coating
  • Trimming device for even finished rolls
Technical Specifications
Item LY-ASP-1200 LY-ASP-1400 LY-ASR-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 250m/min 250m/min 250m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 250kg/h or 400kg/h
Resins: LLDPE/LDPE/PP/EVA
Laminating thickness range: 8-45μm
Base material: Paper(35-350gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)
Double Station Unwinder
The double station unwinder is applied to multiple materials and has a wide range, which can automatically change rolls without stopping machine or reduce speed. With one button and no-button type operation, is simple and convenient. It occupies small area, and can save the production spaces.
Automated Extrusion Coating Machine 380V 50Hz 250m/min 0
Compound Machine
The compound device consists of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and other components. It combines melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating, performing composite, cooling and shaping functions.
Automated Extrusion Coating Machine 380V 50Hz 250m/min 1
Bead Cut Equipment
Shrink-width makes two sides thicker, requiring trimming to prevent quality problems such as drape, crimp and unevenness. Our bead cut equipment features convenient cutter renewal and width adjustment, saving time and labor while ensuring flat, smooth products.
Automated Extrusion Coating Machine 380V 50Hz 250m/min 2
Company Overview
Jiangsu Laiyi Packing Machinery Co.,Ltd, founded in 2007 and relocated in 2015, has become an industry leader in China's extrusion lamination sector with increasing market share. Our 13,000 square meter facility includes large office buildings, 4 workshops, and a warehouse, supported by professional R&D, assembly, and after-sales teams.
Factory Information
Factory Size: 20,000-40,000 square meters
Factory Location: NO.238 East Jinsheng Road, JinTan District, ChangZhou City, JiangSu Province, China
No. of Production Lines: 3
Contract Manufacturing: OEM / ODM Service Offered
Annual Output Value: US$2 Million - US$3 Million
Market Distribution
Main Markets Total Revenue (%)
Domestic Market 40.00%
Mid East 5.00%
South Asia 5.00%
South America 5.00%
Southern Europe 3.00%
Eastern Asia 3.00%
North America 2.00%
Southeast Asia 1.00%
Northern Europe 1.00%
Eastern Europe 1.00%
Oceania 1.00%
Central America 1.00%
Western Europe 1.00%
Africa 1.00%
Business Terms
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, Credit Card, Western Union
Nearest Port: DELHI INDIA, PENANG MALAYSIA, CALLA PERU
Frequently Asked Questions
Q: What's the size of your machine?
A: From 1200mm to 2500mm, we can design and make according to your requirement.
Q: Which machine should I choose?
A: Our extrusion laminating lines cover single side, double sides, multi-layer co-extrusion machines for roll-based paper, films, metalized films, aluminium foil, clothes, woven and non-woven fabric, etc.
Q: How to carry out the machine acceptance?
A: After installation in our factory, your representative(s) will be invited to inspect test running before shipment.
Q: Does your machine have alarm devices?
A: Yes, we have warning lights in each part for paper break and fault alarms.
Q: How can I install the machine?
A: Our engineers will provide overseas service after you receive the shipped machine.
