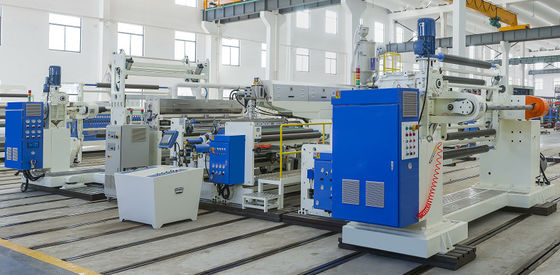

Flexible Packaging 400kg H 8gsm 45gsm Coating Lamination Machine

Flexible Packaging 400kg H 8gsm 45gsm Coating Lamination Machine

MOQ: 1 set
Price: $100,000-250,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C , T/T
Supply Capacity: Max 20sets per month
Detail Information
Place of Origin
China
Brand Name
Laiyi
Certification
CE, ISO
Model Number
ASP
Type:
Extrusion Laminator
Model:
Automaitc
Driven Type:
Mechanical
Voltage:
By Customer
Lifetime:
More Than 10 Year
Water Tempeture:
15℃~25℃
Air Pressure:
0.3~0.9MPa
Warranty Time:
1year
Life Time:
More Than 10years
After Sales Service:
Engineers Avaiable To Service Machnery Oversea
Minimum Order Quantity:
1 set
Price:
$100,000-250,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C , T/T
Supply Ability:
Max 20sets per month
High Light:

45gsm Coating Lamination Machine

,

400kg H Coating Lamination Machine

,

45gsm extrusion laminator

Product Description

400kg/h output 380V 50Hz 8gsm~45gsm roll paper extrusion laminator



Our company located at No.238 East Jinsheng Rd., Jintan District,Changzhou City, Jiangsu Province, China. Post code:213200.Covers an area over 13,000square meters, we have a large office building, 4 workshops and a warehouse. With professional R&D team, long-time cooperating suppliers, assemble team, packaging team, after-sales service team.We are able to provideour customers with machines of good quality and stable performance. Our annual sales is about USD20 Million, and keeps rising year by year.



We have a professional R&D team, trustworthy workers and reliable after-sales service team, strive to provide tailor-made production with best quality and service to build long-lasting co-operation with our future partners all over the globe.​



This machine with double shaft-less paper roll stands,suit for 3~6 inch paper core, automatic lift and easier operation. the suto splicer device realize paper in 150-300m/min speed exchange without decrease machine line speed. Ultrasonic type EPC system, makes frequent replacement materials operation more simple. Hydraulic lamination structure make coating thinner and firm. Trimming device make the finished coated paper rolls even. Special cuttion knife and rewinder design makes high speed rewinding shafts exchange possible.





Specifications:



Machine width:1200mm/1400mm/1700mm

Effective width:Max1100mm/1300mm/1600mm

Machine speed:250m/min

Srew diameter:LD-90mm/LD115mm

Extruder output:Max250kg/h or 400kg/h

Used resins: LDPE/PP/EVA

Coating resins:8~45μm

Max diameter: unwinder & rewinder φ1200mm

Basic material: Paper(35~350gsm)

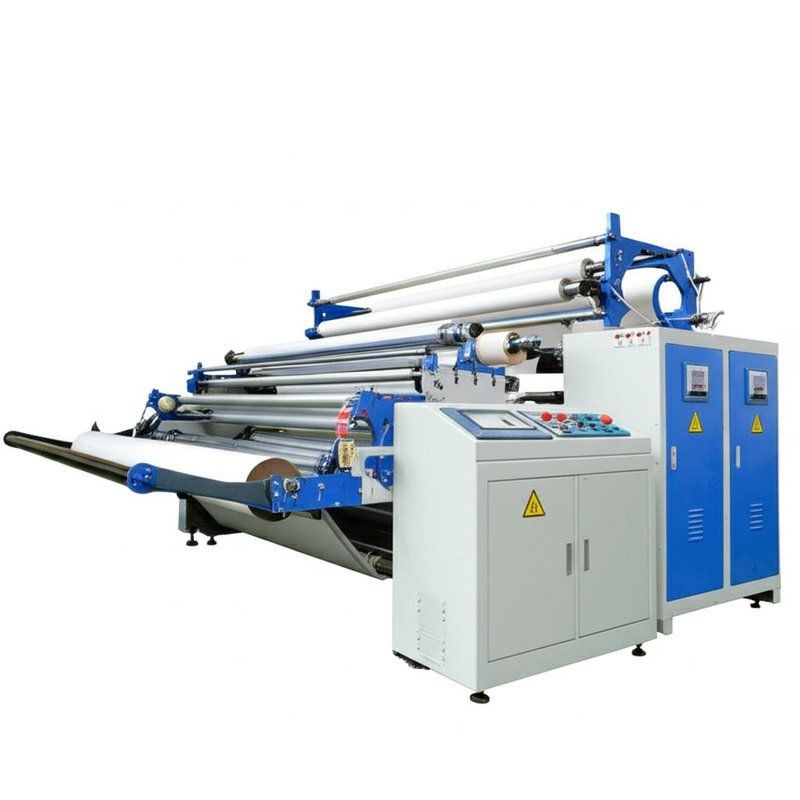

Double station unwinder:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.

Flexible Packaging 400kg H 8gsm 45gsm Coating Lamination Machine 0

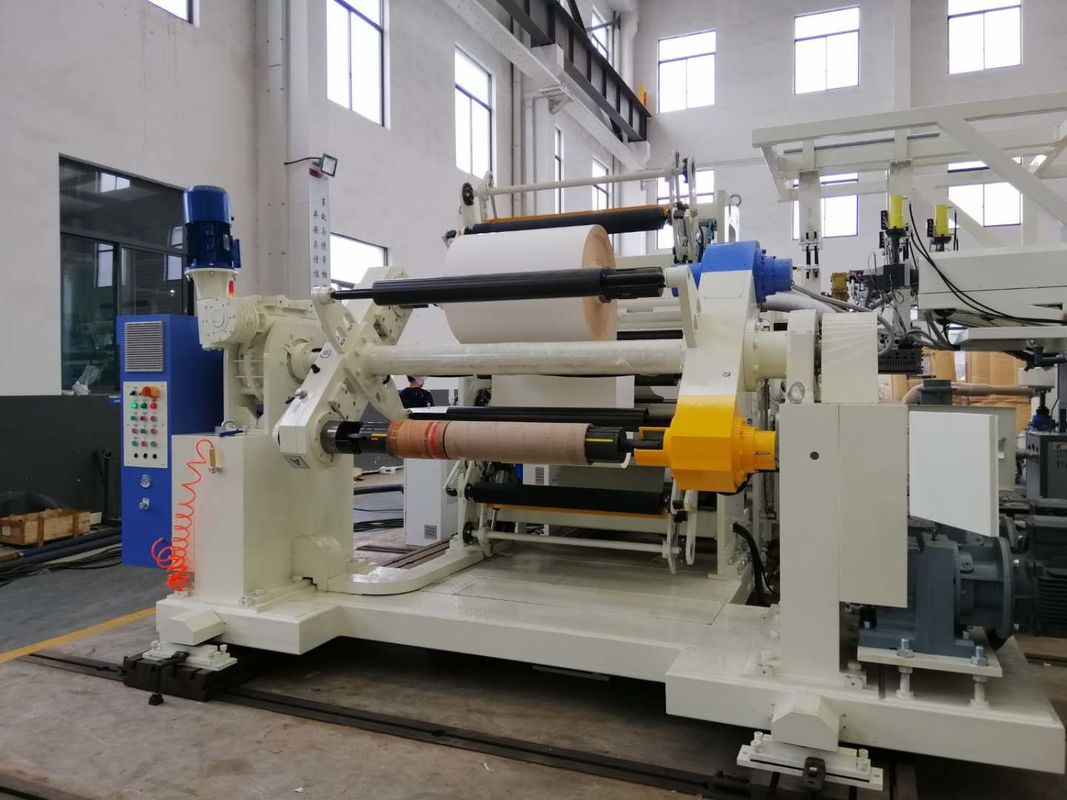

Double station rewinder:

  • It can automatically change rolls without stopping machine or reducing speed.
  • It applies to multiple materials and has a wide range of uses, has different way to control tension of different material.
  • It uses suspension type press roller to rewind, the tension of multiple materials can be controlled to guarantee the smooth and beauty of the production surface.

Flexible Packaging 400kg H 8gsm 45gsm Coating Lamination Machine 1

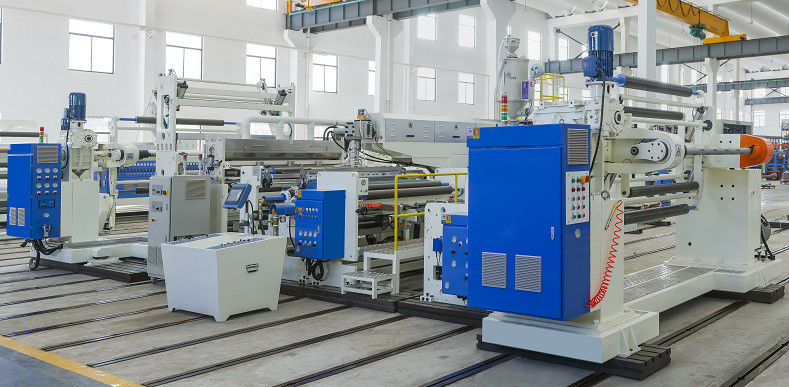

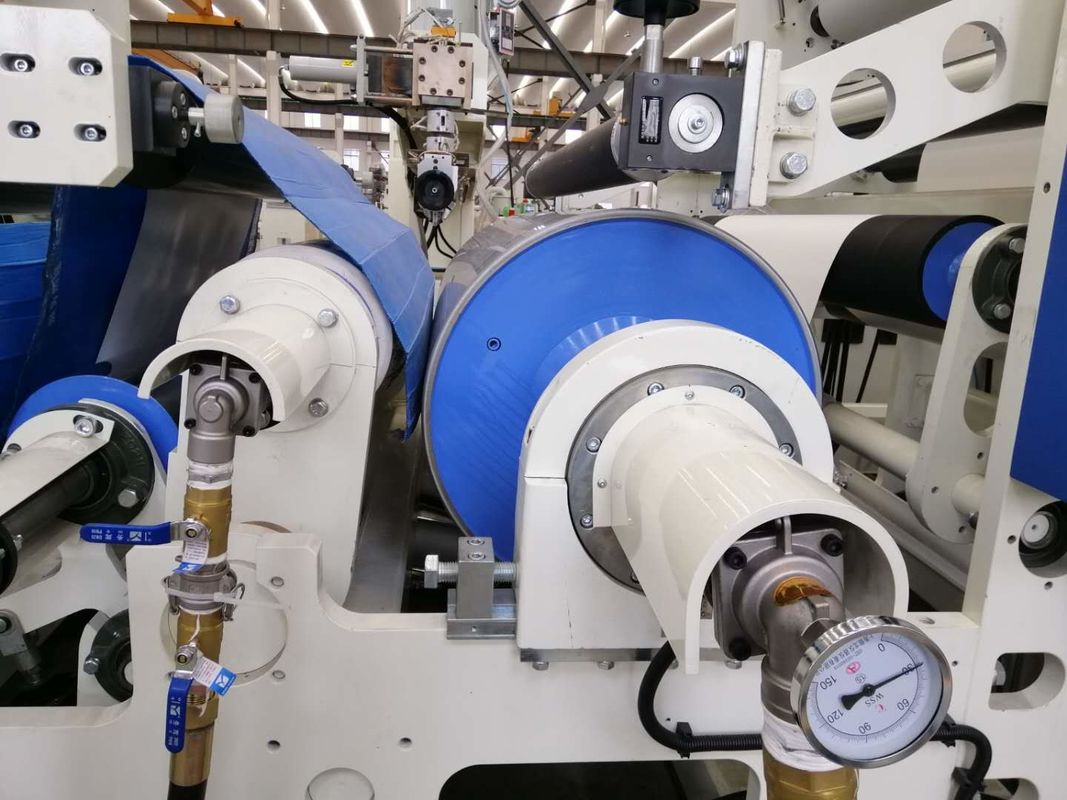

Compound machine

  • The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
  • Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.

Flexible Packaging 400kg H 8gsm 45gsm Coating Lamination Machine 2



​Bead cut equipment

  • Shrink-width makes two sides thicker, as a result, the two sides of the composite material need to be trimmed, otherwise the composite material will have some quality problems such as drape, crimp and unevenness.
  • It is convenient to renew cutter and adjust effective width. It can save time and labor at the same time, and makes the products flat and smooth.

Flexible Packaging 400kg H 8gsm 45gsm Coating Lamination Machine 3
