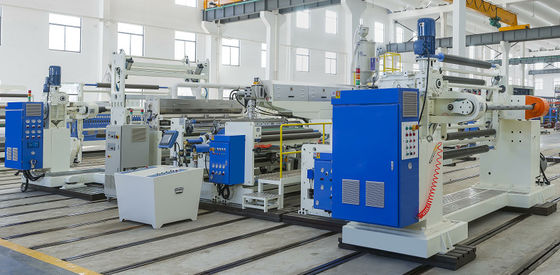

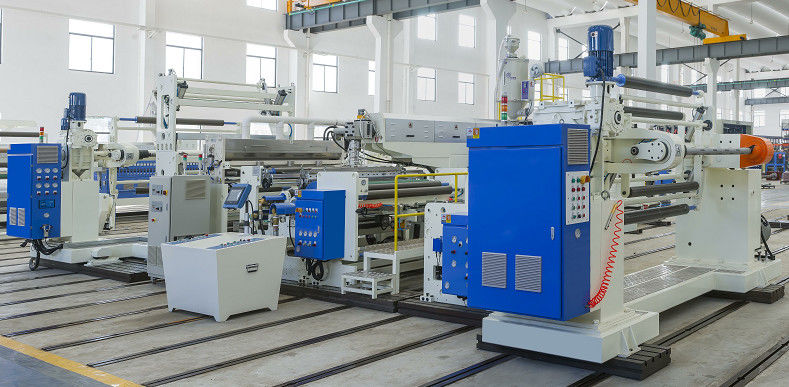

Automatic machinized max 250m/min high speed extruder coating lamination machine
Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.
Our extrusion laminating lines cover single side, double sides, muti-layer co-extrusion machines for roll-based paper, films, metalized films, aluminium foil, clothes, woven and non-woven fabric, etc. And the final products are widely used in many fields and industries, such as food package, liquid package, aseptic package for cosmetic and medical applications and package for stationary and electronic products.We have got many patents and been granted various certificates such as CE and ISO9001.
We have a professional R&D team, trustworthy workers and reliable after-sales service team, strive to provide tailor-made production with best quality and service to build long-lasting co-operation with our future partners all over the globe.
This machine with double shaft-less paper roll stands,suit for 3~6 inch paper core, automatic lift and easier operation. the suto splicer device realize paper in 150-300m/min speed exchange without decrease machine line speed. Ultrasonic type EPC system, makes frequent replacement materials operation more simple. Hydraulic lamination structure make coating thinner and firm. Trimming device make the finished coated paper rolls even. Special cuttion knife and rewinder design makes high speed rewinding shafts exchange possible.
Specifications:
| Item | LY-ASP-1200 | LY-ASP-1400 | LY-ASR-1700 |
| Effective laminating width: | max1100mm | max1300mm | max1600mm |
| Machinery speed: | 250m/min | 250m/min | 250m/min |
| Screw diameter: | φ90mm | φ100mm | φ115mm |
| Max unwinder diameter: | φ1200mm | φ1200mm | φ1200mm |
| Max rewinder diameter: | φ1200mm | φ1200mm | φ1200mm |
| Max output: | 250kg/h or 400kg/h | ||
| Resins: | LLDPE/LDPE/PP/EVA | ||
| Laminating thickness range: | 8-45μm | ||
| Base material: | Paper(35-350gsm) | ||
| Water supplier temperature: | 15°-25° | ||
| Power supply: | 380V-50Hz (3-phase 5-wire) | ||
Double station unwinder:
The double station unwinder is applied to multiple materials and has a wide rang , which can automatically change rolls without stopping machine or reduce speed. With one button and no-button type operation, is simple and convinient. It occupies small area, and can save the production spaces.
Compound machine
The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.

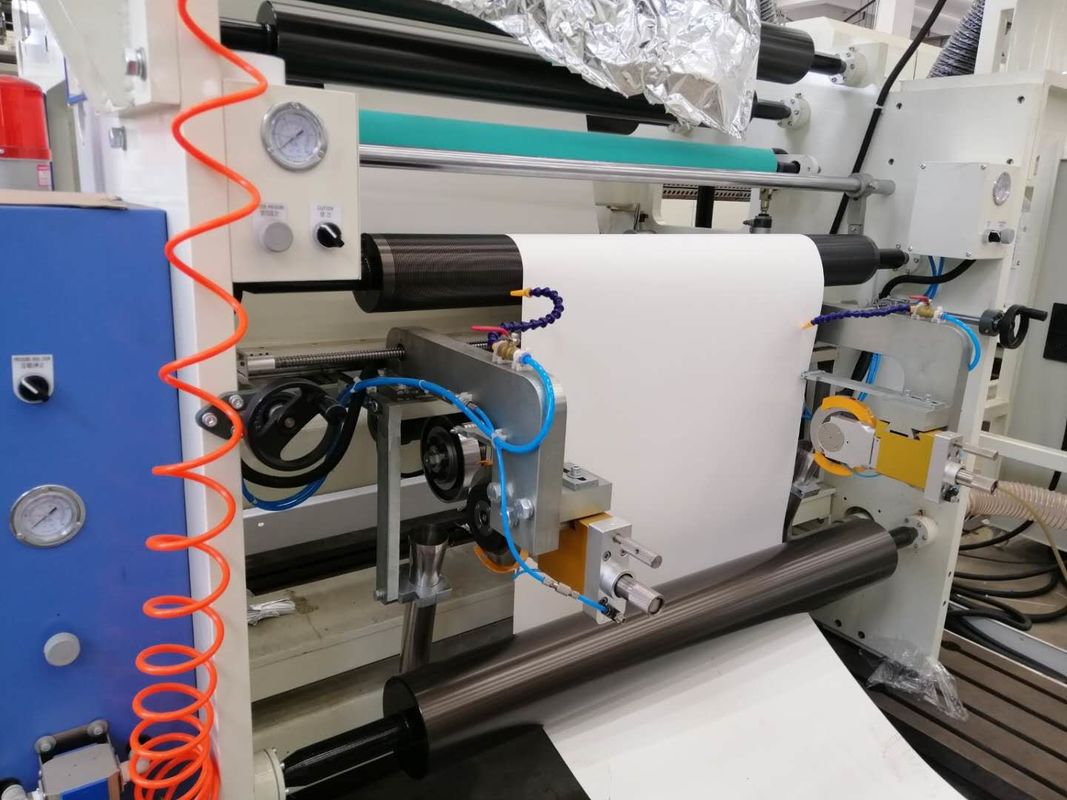

Bead cut equipment
Shrink-width makes two sides thicker, as a result, the two sides of the composite material need to be trimmed, otherwise the composite material will have some quality problems such as drape, crimp and unevenness.
It is convenient to renew cutter and adjust effective width. It can save time and labor at the same time, and makes the products flat and smooth.
Our Company
Jiangsu Laiyi Packing Machinery Co.,Ltd was founded in 2007 and moved to Jintan District in 2015. The new factory with enlarged scale and advanced technology has improved its brand influence and become the industry leader in the forefront of China with increasing market share in China's extrusion lamination industry.
Our company located at No.238 East Jinsheng Rd., Jintan District,Changzhou City, Jiangsu Province, China. Post code:213200.Covers an area over 13,000square meters, we have a large office building, 4 workshops and a warehouse. With professional R&D team, long-time cooperating suppliers, assemble team, packaging team, after-sales service team.We are able to provideour customers with machines of good quality and stable performance. Our annual sales is about USD20 Million, and keeps rising year by year.
people Oriented
Create corporate culture as respecting each other and making progress by learing
from each other.
Company History:
Changzhou Laiyi Plastics machinery Co.,Ltd. was established in 2007 and changed o Jiangsu Laiyi Packing
Machinery Co.,Ltd.2015. The new factory with enlarged scale and advanced technology in the new district has
iimproved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in the China.
Laiyi has provided its own high quality extrusion laminating production line to customers. Laiyi has long-term strategic cooperation relationship with enterprises all over the world and is long-term cooperation supplier of Yongyi Group, Xingyuan Holding Co., Ninbo Asia Paper Co., etc in China and India Uflex Limited, Indonesia Pt. Squar Jaya., etc.
Jiangsu Laiyi has a highly sophisticated technical personnel, wiith high-quality team that can provide comprehensive and timely service to customers. "Professional qualifications to create brand" is Laiyi business objectives. " Create excellence by quality, provide service with honesty" is Laiyi's business purposes. Laiyi seeks for and improves the scientific management based on talent strategy, to face the soceity with its corporate identity as high social responsibility. in the road ahead, Jiangsu Laiyi hopes to confirm your confidence in cooperation better and realize dreams of each other faster by its fast, professional and enthusiastic service.
Our Team
Strong and flexible service capability:
from food package for snacks to liquid package for milk, from aseptic package for cosmetic and medical supplies to package for staionery and electronci products.
we produce indispensable composite films for packing industry from the commodities to the highly sophisticated products.
the extrusion laminating machine of Jiangsu Laiyi has single sided, double sided, and multi-layer co-extrusion type for various papers machinee. the high-quality and stable performance, the widely used compound films can satisfy customers' diversified demand.
| Factory Size: | 20,000-40,000 square meters | |
|---|---|---|
| Factory Location: |
NO.238 East Jinsheng Road, JinTan District, ChangZhou City, JinagSu Province,China. Post code : 213200 |
|
| No. of Production Lines: | 3 | |
| Contract Manufacturing: | OEM /ODMService Offered | |
| Annual Output Value: | US$2 Million - US$3 Million |
| Main Markets | Total Revenue (%) |
| Domestic Market | 40.00% |
| Mid East | 5.00% |
| South Asia | 5.00% |
| South America | 5.00% |
| Southern Europe | 3.00% |
| Eastern Asia | 3.00% |
| North America | 2.00% |
| Southeast Asia | 1.00% |
| Northern Europe | 1.00% |
| Eastern Europe | 1.00% |
| Oceania | 1.00% |
| Central America | 1.00% |
| Western Europe | 1.00% |
| Africa | 1.00% |
Business Terms
| Accepted Payment Currency: | USD, EUR, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, Western Union |
| Nearest Port: | DELHI INDIA, PENANG MALAYSIA, CALLA PERU |
FAQ
Q: What's the size of your machine?
A: From 1200mm to 2500mm, we can design and make according to your requirement.
Q: Which machine should I choose?
A: Our extrusion laminating lines cover single side, double sides, muti-layer co-extrusion machines for roll-based paper, films, metalized films, aluminium foil, clothes, woven and non-woven fabric, etc
Q: How to carry out the machine acceptance?
A: After the installation of the machine is finished in our factory, the representive(s) of your company will be invited to inspect the test running before shipment.
Q: Does your machine have alarm devices?
A: Of course, we have warning lights in each part of our machine for paper break alarm and fault alarm.
Q: How can I install the machine?
A: Our engineers will provide service overseas after you received the shipped machine.
