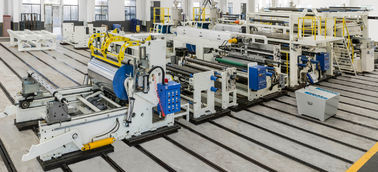

LLDPE Coating 35gsm 1700mm Cardboard Laminating Machine T Die
  • name

LLDPE Coating 35gsm 1700mm Cardboard Laminating Machine T Die

MOQ: 1set
Price: $90,000--$450,000/set
Standard Packaging: seaworthy packing
Delivery Period: 5 months
Payment Method: T/T, , L/C
Supply Capacity: 20sets/month
Detail Information
Product Description
Detail Information
Place of Origin
Changzhou, China
Brand Name
LAIYI
Certification
CE , ISO9001
Model Number
ASRP/ADRP
Machine Model:
LY-ASRP115-1700
Type::
Laminting Machine
Die Model::
T-die
Basic Material::
Paper(35-200gsm)
Resins::
LDPE/LLDPE/PP/EVA
Controlling System::
Full Computer
Length Of Machine:
L*W*H=19.2/13.2*(9.5-12)*4.5m
Warranty::
One Year
Afer Sales Service::
Engineers Availble To Service Machinery Overseas
Life Time::
More Than 10 Years
Minimum Order Quantity:
1set
Price:
$90,000--$450,000/set
Packaging Details:
seaworthy packing
Delivery Time:
5 months
Payment Terms:
T/T, , L/C
Supply Ability:
20sets/month
High Light:

1700mm cardboard laminating machine

,

35gsm cardboard laminating machine

,

35gsm paper roll lamination machine

Product Description







1,Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.





2,Specification of the Line:



Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADRP-1700
Effective laminating width: max1100mm max1300mm max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Resins: LLDPE/LDPE/PP/EVA
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)





The pre-treat unit

  • The pre-treatment includes corona treatment and static elimination on the surface of base materials. Especially in extrusion coating process, corona treatment is needed to assist molten web to permeate into the pores or cottony gaps on the surface of base materials under the pressure of pressure roll, improving the adhension between coating film and base materials.
  •
  • Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.
  •
  • The corona machine is equipped with work condition indicating lamp, oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat,hyper-charger, breakdown and corona lost, and works with high-efficiency and low-consumption.



LLDPE Coating 35gsm 1700mm Cardboard Laminating Machine T Die 0















" Professional qualifications to create brand" is Laiyi's business objective!



"Create excellece by quality, prvide service with honesty" is



Laiyi's business prupose!
