Wholesale Paper Paper Bowel Extrusion Laminating Machine

Wholesale Paper Paper Bowel Extrusion Laminating Machine

paper bowel extrusion laminating machine

wholesale extrusion laminating machine

extrusion laminating machine with warranty

Place of Origin:

Jiangsu changzhou jintan

Brand Name:

Laiyi

Certification:

CE

Model Number:

LY-ASPC

Contact Us
Request A Quote
Product Details
Highlight:

paper bowel extrusion laminating machine

,

wholesale extrusion laminating machine

,

extrusion laminating machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1Set
Packaging Details
Sea worthy packaging
Delivery Time
90-150 days
Payment Terms
L/C,T/T
Supply Ability
Max 20sets per month
Product Description

Wholesale Paper Bowl Extrusion Laminating Machine

Technical Specifications
Product Width 1100mm / 1300mm / 1800mm / 2000mm
Substrate Paper Board
Polymer LDPE / PP / PBS / PLA
Machinery Speed Maximum 350m/min
Unwind Diameter φ1600mm
Rewind Diameter φ1800mm
Paper Bowl Extrusion Laminating Line Components

Core Performance Features

  • Tailored for Heavy Paperboard Rigidness: Reinforced chassis, heavy-duty pressure rollers, and high-torque web-tension systems prevent paper deformation, curling, or creasing when processing thick paperboard up to 450 gsm.

  • Leak-Proof & Hot-Liquid Resistant Coating: Micro-polished T-Dies ensure a dense, continuous resin layer that prevents hot soup, oil, or steam from penetrating paper seams during Ultrasonic or Thermal bowl-forming operations.

Extrusion laminating machine component diagram
Paper bowl laminating machine component view
Laminating machine technical component
Extrusion laminating system component
Paper bowl manufacturing machine part
Laminating line technical diagram

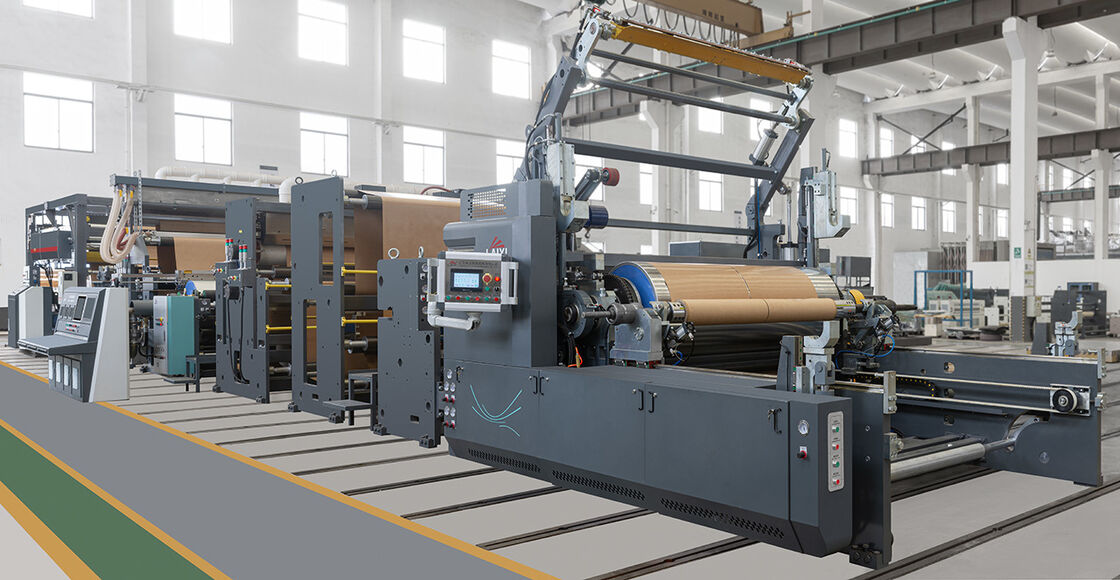

Complete extrusion laminating system
Performance & Advantages
  • LAIYI patented screw technology with high revolving speed, high shear, high mixing, wear-resistant and energy-saving characteristics, ensuring temperature difference between die lips and polymer less than 30°C for enhanced peeling strength
  • Barrel inner wall and screw surface centrifugally cast with special technology for superior corrosion and wear resistance, typically lasting three times longer than ordinary screws
  • Shaftless unwinder with auto-splicer enables butt-to-butt splicing, reducing damage to corona and laminating rolls
  • Heavy duty roll-pressing rewinder achieves up to 300m/min auto-splicing with neat paper reel sides
  • Optional automatic shaft pulling system improves automation level and reduces dependence on manual operation
  • Equipped with international first-class electrical brands for efficient and stable electrical system operation
Application
Paper Bowl Manufacturing
Paper bowl manufacturing process demonstration
Finished paper bowl products from laminating machine
