| MOQ: | 1 set |

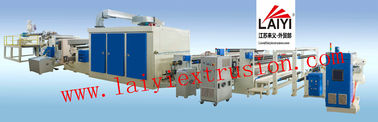

1. full auto PVDF films extrusion laminating machine
2. full auto PVDF films extrusion laminating machine
Technical parameters
| Machine specification | 1300mm |
| Product width | 1100mm |
| Machine speed | 60m/min |
| Tension range | 2-200n |
| Tension accuracy | ±2n |
| Core shaft size | 3″or 6″ |
| Basic material | PVDF |
| Rewinding diameter | MaxΦ800mm |
| Machine Dimension(L*W*H)) | 19×4.2×2.7m |
Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.
Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.
1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .
2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed
3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple
4) Hydraulic lamination structure design , can make coating thinner and firm .
5) Trimming device make the finished coated paper rolls even
6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
|
|
