BOPP pre-coated film extrusion laminating machine

BOPP pre-coated film extrusion laminating machine

  • High Light

    automatic lamination machine


    big size laminating machine

  • Type
    Extrusion Lamianting Machine
  • Condition
  • Automatic Gra
  • Driven Type
  • Voltage
  • Lifetime
    More Than 10 Year
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
    1 set

BOPP pre-coated film extrusion laminating machine

1. BOPP pre-coated film extrusion laminating machine

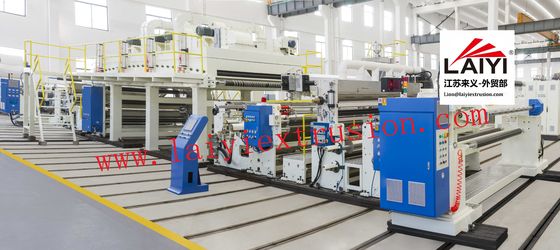

BOPP pre-coated film extrusion laminating machine 0
2. BOPP thermal film (BOPP pre-coated film)/ PET pre-coated film
Technical parameters
Machine specification 1700mm/2400mm
Effective width Max 1600mm/2200mm
Machine speed 300m/min
Extruder LD-90mm/LD-100mm
Extruder power 45-55kw
Extruder output Max 200kg/h or 250kg/h
Used resins Coated resins like LDPE/PP/EVA
Coating thickness 5-45μm
Thickness uniformity ≤±5%
Unwinding diameter Max Φ800mm
Rewinding diameter Max Φ800mm
Basic material Plastic films
Tension control Full automatic constant tension control of unwinder and rewinder
Control mode Human-machine interface, extrusion thickness is automatically precision calculated by computer, whole machine linkage control
Frequency converter Imported AC digital vector control inverter
Machine Dimension(L*W*H) 32.3×13×5.5m



3. BOPP pre-coated film extrusion laminating machine

Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

4. BOPP pre-coated film extrusion laminating machine

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
