Automatic Pvc Film / Sheet Automatic Lamination Machine For Plastic Coating

Automatic Pvc Film / Sheet Automatic Lamination Machine For Plastic Coating

MOQ: 1 set
Detail Information
Brand Name
Laiyi
Certification
CE
Type:
Laminating Machine
Condition:
New
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Lifetime:
More Than 10 Years
Minimum Order Quantity:
1 set
Highlight:

automatic lamination machine

,

big size laminating machine

Product Description

Automatic Pvc Film / Sheet Automatic Lamination Machine For Plastic Coating



1. Double-sided adhesive release papers

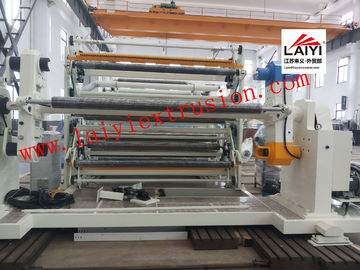

Automatic Pvc Film / Sheet Automatic Lamination Machine For Plastic Coating 0

Double-sided adhesive release papers and photo papers, etc

2. Double-sided adhesive release papers

Technical parameters

Machine specification 1200mm/1400mm/1700mm
Effective width Max1100mm/1300mm/1600mm
Machine speed 350m/min
Extruder LD-90mm/LD-100mm “Automatic lifting type extruder”
Extruder power 45-55kw
Extruder output Max 200kg/h or 250kg/h
Used resins Coated resins like LDPE/LLDPE/PP/EVA/EAA
Coating thickness 8-45μm
Thickness uniformity ≤±5%
Unwinding diameter Max Φ1200mm
Rewinding diameter Max Φ1200mm
Basic material Paper(35-200g/㎡)
Tension control Full automatic tension roller closed-loop constant tension control of unwinder and rewinder
Control mode Human-machine interface, extrusion thickness is automatically precision calculated by computer, whole machine linkage control
Frequency converter Imported AC digital vector control inverter
Machine Dimension(L*W*H) 19.2/13.2×(9.5-12)×4.5m



3. Double-sided adhesive release papers

Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

4.Double-sided adhesive release papers

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
