Automatic Double-Sided PE Coating Lamination Machine 200m/min

MOQ: 1 set
Price: $100,000-250,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C,T/T
Supply Capacity: Max 20sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Laiyi
Certification
CE, ISO
Model Number
ADPC
Type:
Extruder LaminatIng Machine
Automatic Gra:
Automated ,auto
Driven Type:
Mechanical
Voltage:
By Customer
Lifetime:
More Than 10 Year
Water Tempeture:
15℃~25℃
Air Pressure:
0.3~0.9MPa
Warranty:
1year
Life Time:
More Than 10years
After Sales Service:
Engineers Avaiable To Service Machnery Oversea
Production Speed:
200m/min
Minimum Order Quantity:
1 set
Price:
$100,000-250,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C,T/T
Supply Ability:
Max 20sets per month
Highlight:

PE Paper Coating Lamination Machine

,

8gsm Paper Coating Lamination Machine

,

8gsm extrusion coating machine

Product Description
Double Sided 8gsm PE Paper Coating Lamination Machine 200m/Min
Fully Automatic Double-sided 8gsm~45gsm PE Cup Paper Extrusion coating machine from Jiangsu Laiyi, located at No.238 East Jinsheng Rd., Jintan District, Changzhou City, Jiangsu Province, China.
Company Overview
Covering over 13,000 square meters with 4 workshops and a warehouse, we maintain a professional R&D team and comprehensive support systems including assembly, packaging, and after-sales service teams. Our annual sales reach approximately USD20 Million with consistent growth.
Main Features
  • Double Shaft-less paper roll stands suitable for 3-6 inch paper core with automatic lift for easier operation
  • Auto splicer device enables paper exchange at 150-300 m/min without decreasing machine line speed
  • Ultrasonic type EPC system simplifies frequent material replacement operations
  • Hydraulic lamination structure design produces thinner, firmer coatings
  • Trimming device ensures even finished coated paper rolls
  • Special cutting knife and rewinder design enables high-speed rewinding shaft exchange
Technical Parameters
Machine width 1200/1400/1700
Effective width Max 1100/1300/1600mm
Machine speed 150-300m/min
Screw diameter LD-100mm/LD-115mm
Extruder output Max 400kg/h or 550kg/h
Used resins Coated resins like LDPE/PP/PBS/PLA
Coating thickness 8-45um
Max diameter Unwinder:φ1500mm: Rewinder:φ1800mm
Basic material Paper(100-400g/m3)
Dimension(L*W*H) Single:21.5X(9.5~11)X3.8m

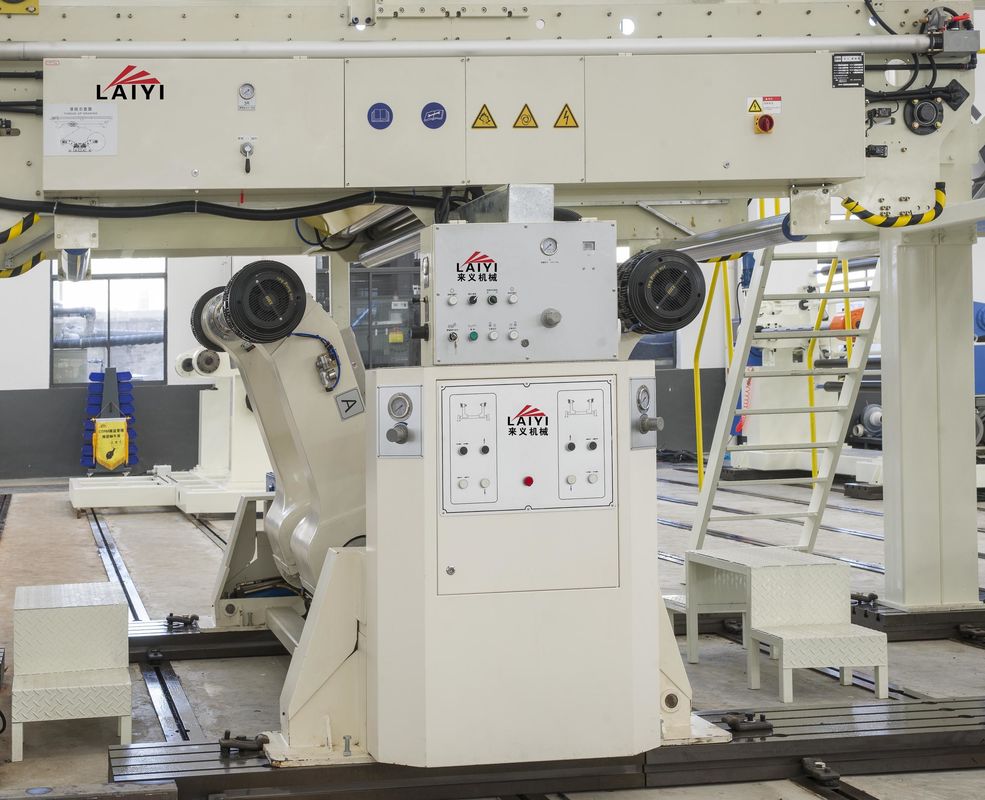

Automatic Double-Sided PE Coating Lamination Machine 200m/min 0
PRE-TREATMENT
The pre-treatment includes corona treatment and static elimination on the surface of base materials. In extrusion coating process, corona treatment helps molten web permeate into surface pores under pressure roll pressure, improving adhesion between coating film and base materials.
  • Corona treatment automatically stops below 20m/min and resumes above 20m/min
  • Equipped with work condition indicating lamp and oil-immersed high-frequency transformer
  • Features electric digital meter reading output power and adjustable low-speed interlock
  • Provides warnings for overheat, hyper-charger, breakdown and corona loss
  • Operates with high-efficiency and low-consumption

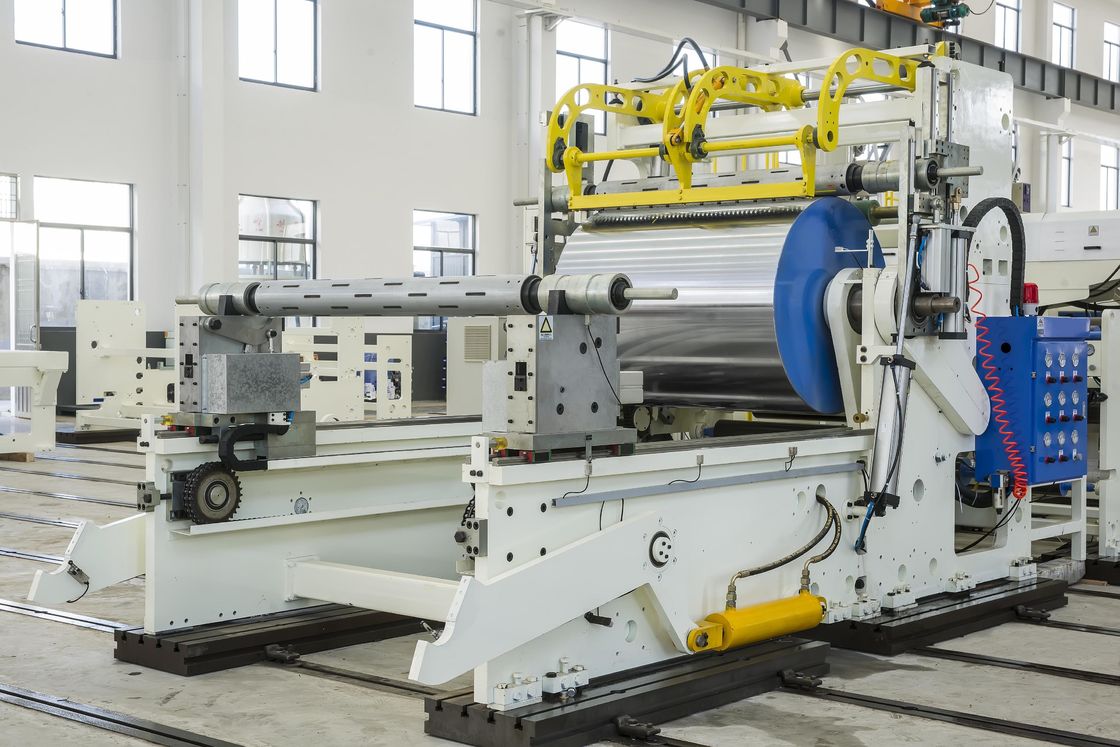

Automatic Double-Sided PE Coating Lamination Machine 200m/min 1
Compound Machine
The compound device consists of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, and wheelwork pneumatic device. This key extrusion lamination device performs composite, cooling and shaping functions.
Production line features external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. Cooling water in the clamp cover removes heat from melted thin film, improving fastness, smoothness and appearance of composite products.

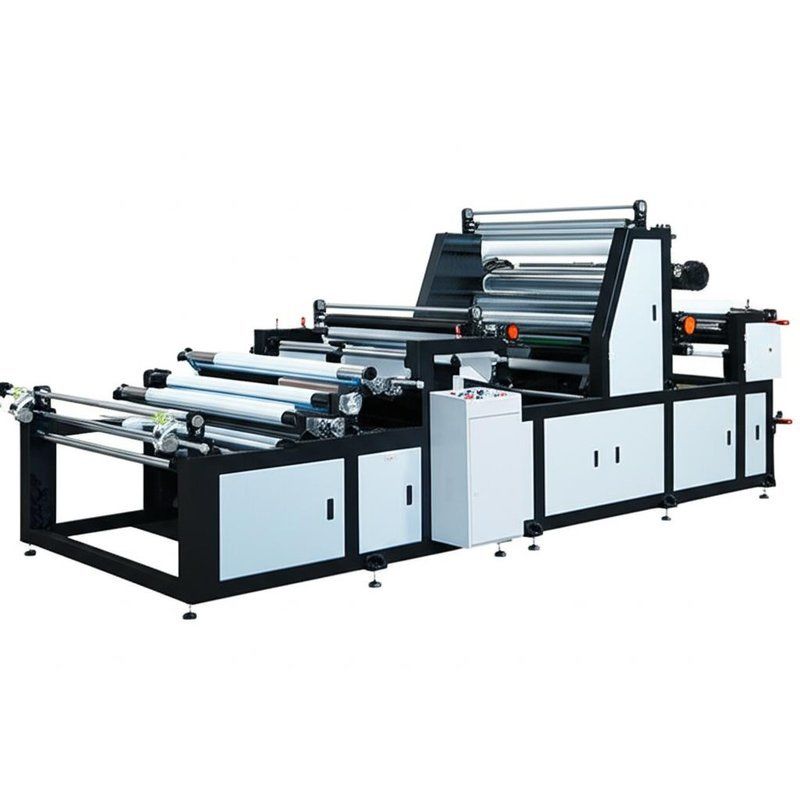

Automatic Double-Sided PE Coating Lamination Machine 200m/min 2

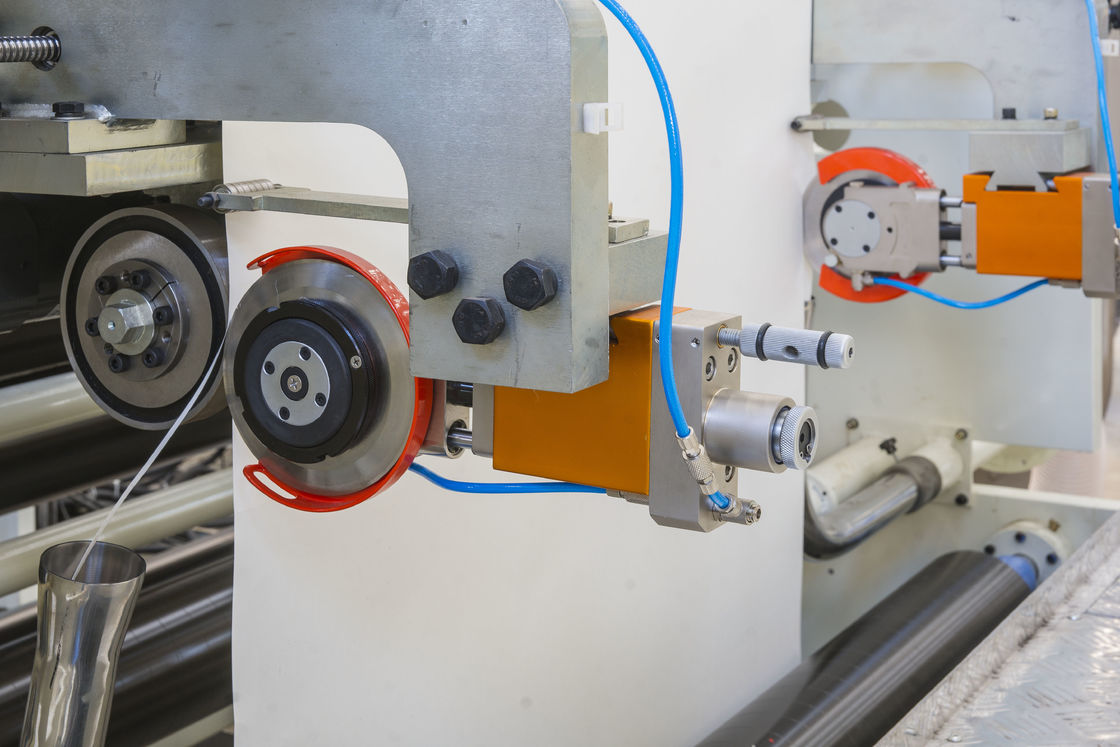

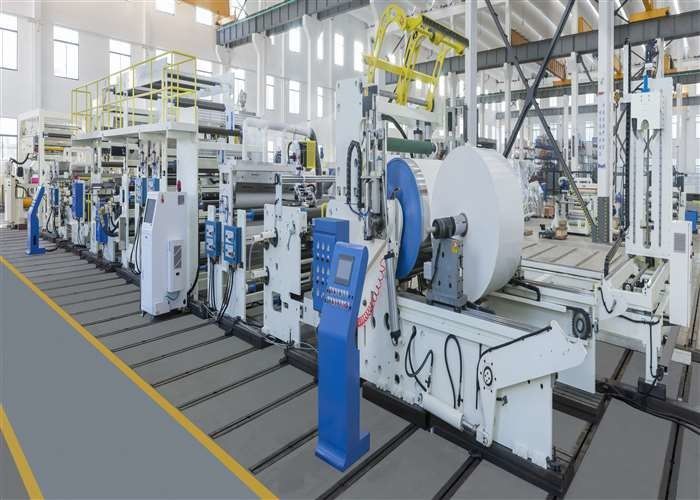

Workshop Pictures
Automatic Double-Sided PE Coating Lamination Machine 200m/min 3
Automatic Double-Sided PE Coating Lamination Machine 200m/min 4
