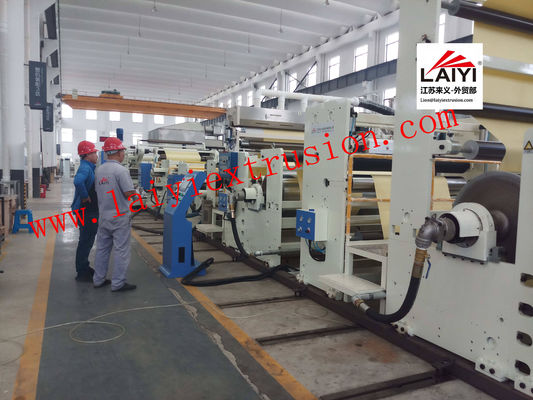

Pe Hot Melt Extrusion Ldpe Coating Machine , 380V Automatic Lamination Machine

Pe Hot Melt Extrusion Ldpe Coating Machine , 380V Automatic Lamination Machine

MOQ: 1 set
Price: $70,000-200,000
Standard Packaging: Sea worthy packaging
Delivery Period: 90-150 days
Payment Method: L/C , T/T
Supply Capacity: Max 20sets per month
Detail Information
Place of Origin
China
Brand Name
Laiyi
Model Number
ADPC
Type:
Extrusion Lamiatng Machine
Condition:
New
Automatic Gra:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Lifetime:
More Than 10 Year
Minimum Order Quantity:
1 set
Price:
$70,000-200,000
Packaging Details:
Sea worthy packaging
Delivery Time:
90-150 days
Payment Terms:
L/C , T/T
Supply Ability:
Max 20sets per month
High Light:

extrusion coating lamination machine

,

ldpe coating machine

Product Description

Pe Hot Melt Extrusion Ldpe Coating Machine , 380V Automatic Lamination Machine





1. Cup Paper Extrusion Laminating Machine

Technical parameters

Machine width 1200/1400/1700mm
Effective width Max 1100/1300/1600mm
Machine speed 300m/min
Screw diameter LD-100mm/LD-115mm
Extruder output Max 400kg/h or 550kg/h
Used resins Coated resins like LDPE/PP/PBS/PLA
Coating thickness 8-45μm
Maxdiameter Unwinder:Φ1500mm;Rewinder:Φ1800mm
Basic material Paper(100-400gsm)
Dimension(L*W*H)
Double:30.7*(9.5-11)*3.8m

Single:21.5*(9.5-11)*3.8m



2. Cup Paper Extrusion Laminating Machine

Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

3. Cup Paper Extrusion Laminating Machine

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible



Pe Hot Melt Extrusion Ldpe Coating Machine , 380V Automatic Lamination Machine 0
